Copper electrodes for erosion machining on tool grinding machines are available at reasonable prices. We can also supply electrodes formed from catalogue shapes to suit your application.
In recent years, with the evolution of aluminium alloys and the increasing use of CFRP materials, round tools with PCD (polycrystalline sintered diamond) cutting edges are often used for drilling and reaming. One of the machining methods used to form the cutting edge is spark erosion (electrical discharge machining – EDM) machining, and copper electrodes used in this process need to be replaced regularly as they need to be dressed frequently to maintain machining accuracy. In order to provide these copper electrodes at a low cost, we offer inexpensive, high-quality copper electrodes made in Italy.

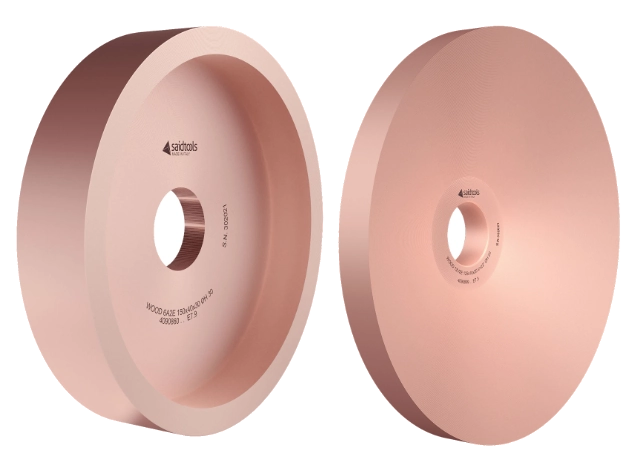

Electrode for spark erosion of PCD (polycristalline diamond) tools
Processing: PCD tools
Application: Peripheral processing
Erosion machines: Walter, Vollmer
Recommended material grade: Electrode E7.3

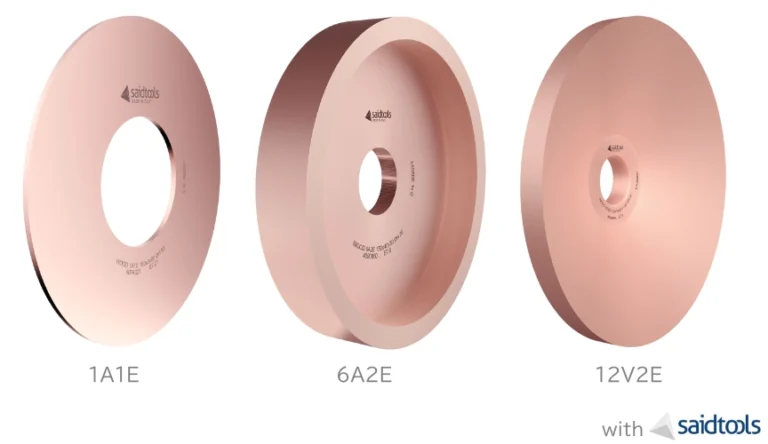

Type | Diameter (D) [ø mm] | Thickness (T) [mm] | Hole diameter (H) [ø mm] |
1A1E | ø50 | 3 | ø10 |
4 | |||
5 | |||
10 | |||
15 | ø15 |
Type | Diameter (D) [ø mm] | Thickness (T) [mm] | Hole diameter (H) [ø mm] |
1A1E | ø80 | 3 | ø10 |
5 | |||
6 | |||
8 | |||
10 | ø15 | ||
15 | ø10 |
Type | Diameter (D) [ø mm] | Thickness (T) [mm] | Hole diameter (H) [ø mm] |
1A1E | ø100 | 3 | ø20 |
4 | |||
5 | |||
8 | |||
10 | ø32 | ||
15 |
Type | Diameter (D) [ø mm] | Thickness (T) [mm] | Hole diameter (H) [ø mm] |
1A1E | ø125 | 3 | ø20 |
ø60 | |||
4 | ø20 | ||
5 | |||
6 | |||
8 | |||
8 | ø60 | ||
10 | ø20 |
Type | Diameter (D) [ø mm] | Thickness (T) [mm] | Hole diameter (H) [ø mm] |
1A1E | ø150 | 3 | ø20 |
ø60 | |||
5 | ø60 | ||
ø20 | |||
6 | ø20 | ||
ø60 | |||
8 | ø20 | ||
ø60 | |||
10 | ø20 | ||
ø60 |
Type | Diameter (D) [ø mm] | Thickness (T) [mm] | Hole diameter (H) [ø mm] |
1A1E | ø175 | 3 | ø60 |
5 | |||
8 | |||
10 |
Electrode for spark erosion of PCD (polycristalline diamond) tools
Processing: PCD tools
Application: Face processing
Erosion machines: Vollmer
Recommended material grade: Electrode E7.3
Type | Diameter (D) [ø mm] | Thickness (T) [mm] | Hole diameter (H) [ø mm] | Height of support (E) |
6A2E | ø125 | 40 | ø20 | 10 |
ø60 |
Electrode for spark erosion of PCD (polycristalline diamond) tools
Processing: PCD tools
Application: Peripherial processing
Erosion machines: Vollmer, Walter
Recommended material grade: Electrode E7.3
Type | Diameter (D) [ø mm] | Thickness (T) [mm] | Hole diameter (H) [ø mm] | Height of support (E) | Angle (V) |
12V2E | ø125 | 24 | ø20 | 6 | 22 |
Type | Diameter (D) [ø mm] | Thickness (T) [mm] | Hole diameter (H) [ø mm] | Height of support (E) | Angle (V) |
12V2E | ø125 | 28 | ø20 | 10 | 22 |
