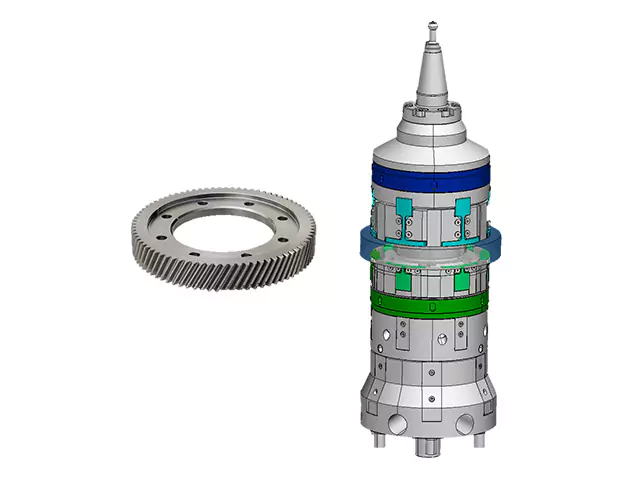

Hobbing machine changeover jig
One unit for hobbing machine processing!
Clamp diameter adjustment mechanism enables complete changeover
Reduces jig setup man-hours by accommodating a wide variety of products
Flexible support for a wide-variety of workpieces
Easy operation reduces complete change over man-hours by 94%!
No need for troublesome parts replacement!
Amazing facts!
── Introducing ideas and technologies ──
The “Hobbing Machine Changeover Jig” flexibly handles clamping of various types of workpieces by means of clamp diameter adjustment and centering mechanism.
Furthermore, the diameter can be adjusted simply by turning the diameter adjustment ring without the need to replace any parts, enabling quick and easy setup work.
This contributes to “investment reduction” and “reduction of setup man-hours”.

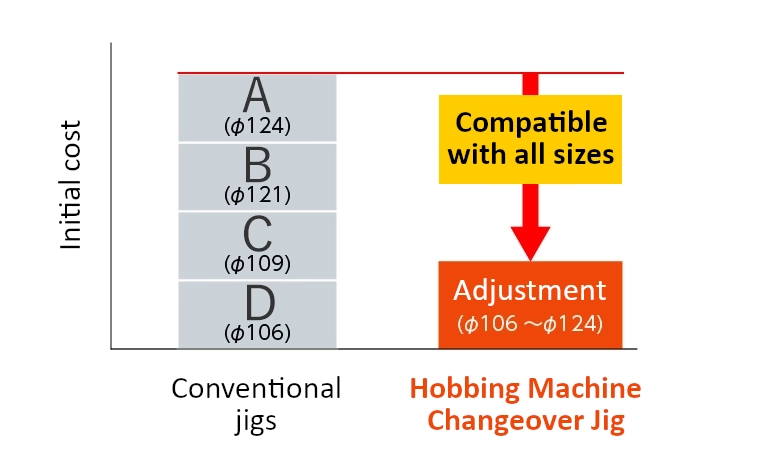

Investment reduction
Good!
Conventional method requires a separate jig for each workpiece (total 4 set, each sized to ø106, ø109, ø121, ø124 mm)
Hobbing Machine Changeover Jig is compatible with all workpieces (total 1 set for ø106~124 mm).
*Dimensions in parentheses indicate the inside diameter of the workpiece.

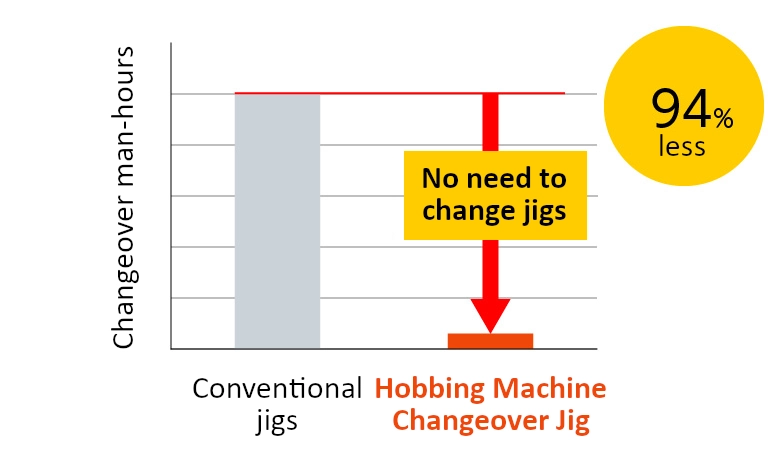

Reduced changeover man-hours
Good!
In fact, there is no need to change any jigs.
This is the point!
Easy and quick changeover:
No need for extensive jig replacement work!
Excellent!
- The clamp position can be flexibly adjusted by rotating the adjustment ring with the movement of the main shaft

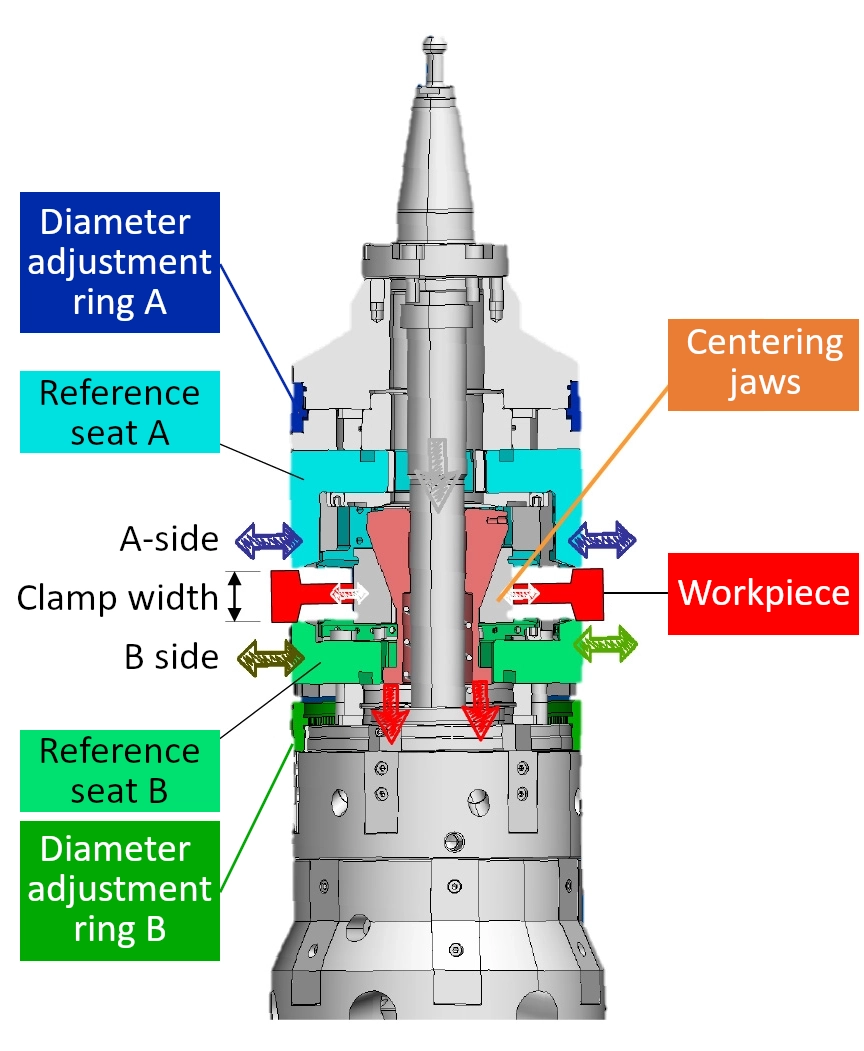

- Structure and parts description
- Diameter adjustment ring A & B adjusts the reference seat by rotating the ring.
- Centering jaws center the workpiece with spindle movement
- Available range
Centering claw support diameter
ø106 ~ 124 mm
Reference seat support diameter
ø172 ~ 204 mm
Clamp width
28 ~ 39 mm
* Reference values for the specification of the listed product.
Special designs and manufacturing are possible according to the purpose and application.

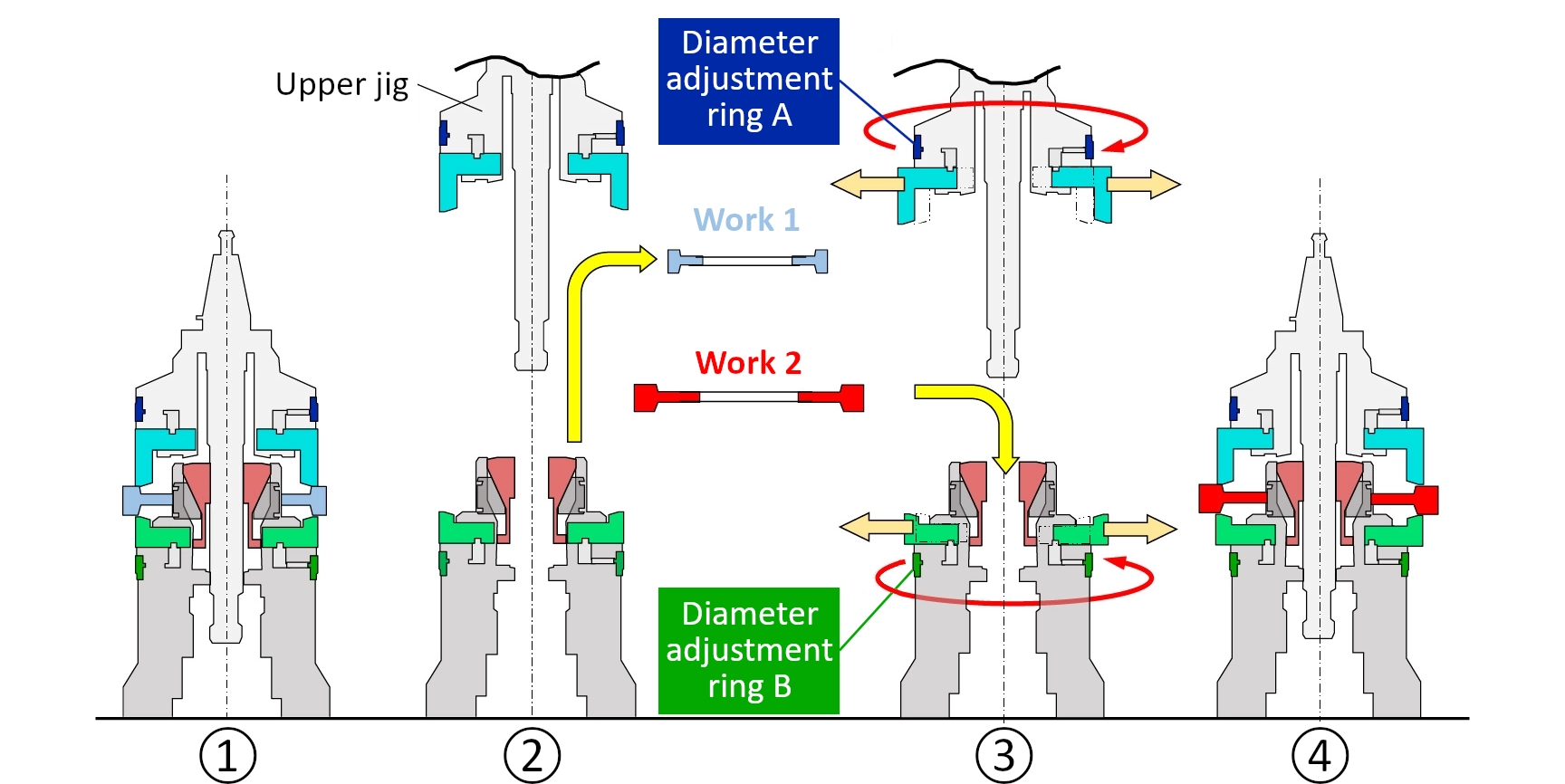

Changeover procedure
Assembled state
Remove upper jig and work 1
Use diameter adjustment rings (A & B) to match work 2 then insert work 2
Return upper jig then center and clamp
Development / product concept
“Current status and challenges”
- Normally, the hobbing machine requires a jig change for each workpiece type, which takes time to change stages. In addition, the need to prepare a jig for each type of workpiece results in a large cost.
“Development points”
- The “hobbing machine step change jig” has variable workpiece centering, and the clamp diameter can be adjusted with the clamp diameter adjustment mechanism ring. It contributes to investment reduction and man-hour reduction in setup.
