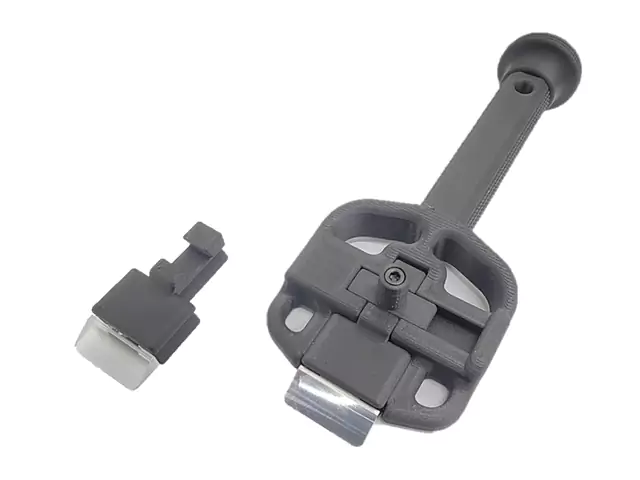

Replaceable tip scraper
Contributing to environmental improvement through the fusion of resin and metal
Integral molding technology realizes optimal cutting edge structure
Scraper aims removal performance and workpiece protection
High removal performance reduces the amount of solvent used
Optimized cutting edge prevents workpiece damage
Reduced running costs with replaceable cutting edges
Amazing facts!
── Introducing ideas and technologies ──
The replaceable tip scraper is a tool for removing adhesives adhered to metal parts.
The cutting edge material is A7075 series aluminium alloy. The optimal cutting edge material is selected according to the application, achieving high removal performance without damaging the workpiece.
Removal amount is significantly increased compared to conventional removal operations. The amount of solvent used in the subsequent process is reduced, and the work time is also shortened.
When the cutting edge is worn out or used for other purposes, only the cutting edge can be replaced, thereby reducing running costs.
The new system achieves “high removal performance”, “reduced solvent usage”, “reduced working hours”, and “reduced running costs”.

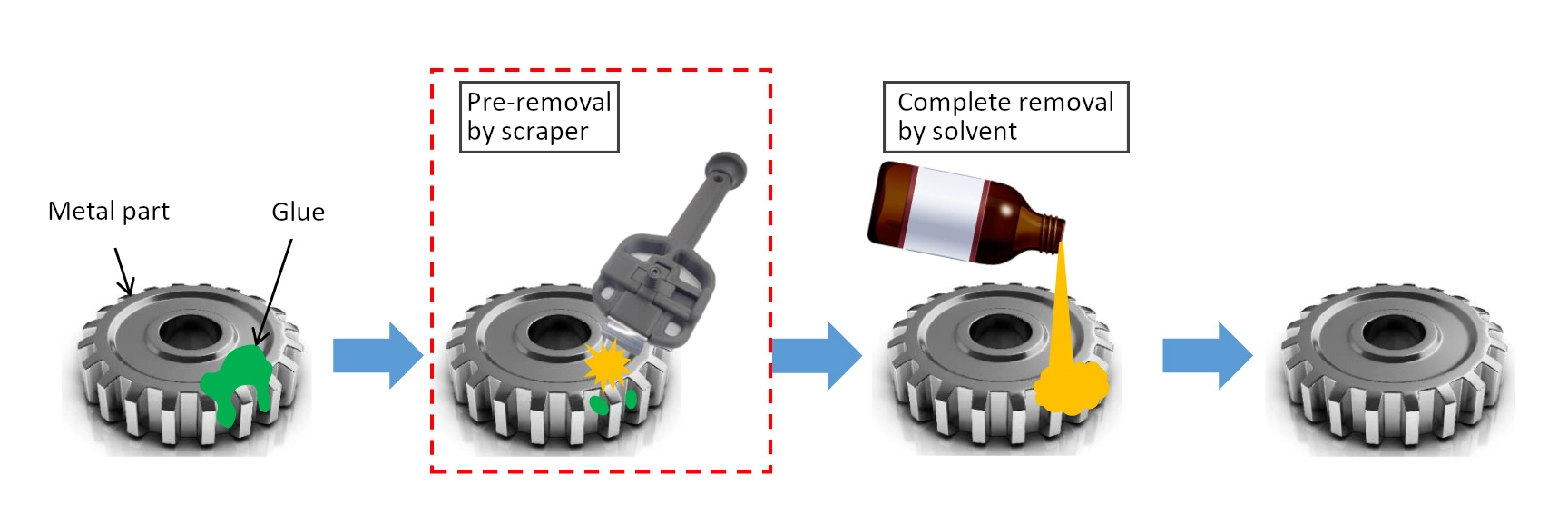

How to use the replaceable tip scraper
Removes glue from metal parts
Scroll to see more >>
Improved removal performance
Good!
Reduced solvent usage
Good!
Reduced working time
Good!
Running cost reduction
Good!

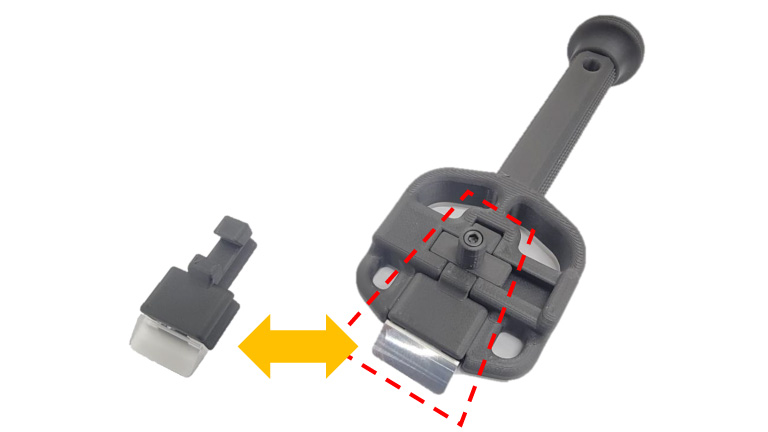

When the cutting edge is worn or a different cutting edge is needed, replaceable insert allows easy replacement .
Development / product concept
“Current status and challenges”
- During wire EDM processing of metal parts, adhesives are applied to prevent products from falling off.
Solvents are used to completely remove the adhesive from the product after processing, but because of the high environmental and safety risks posed by chemical substances, there has been a demand for reducing the amount of solvent used and shortening the work time. - Although commercially available scrapers are used to remove the adhesive before the solvent process, common cutting edges scratch the workpiece and wear quickly, requiring replacement with a new one each time.
“Development points”
- The “Replaceable tip scraper” realizes an optimal cutting edge structure and an easy-to-hold shank shape through molding technology.
- For removal performance and product protection, A7075 aluminium alloy is used for the cutting edge material.
- More adhesive can be removed before the solvent process, contributing to reduced solvent consumption and shorter working hours.
- When cutting edge wears out, replacement costs are minimized as tips are replaceable.
Product specification
- Special designs and manufacturing are possible depending on the purpose and application
For details, refer to our 3D printing services.
The shank has an easy-to-hold shape and has knurling on its surface
Tool name
Replaceable tip scraper

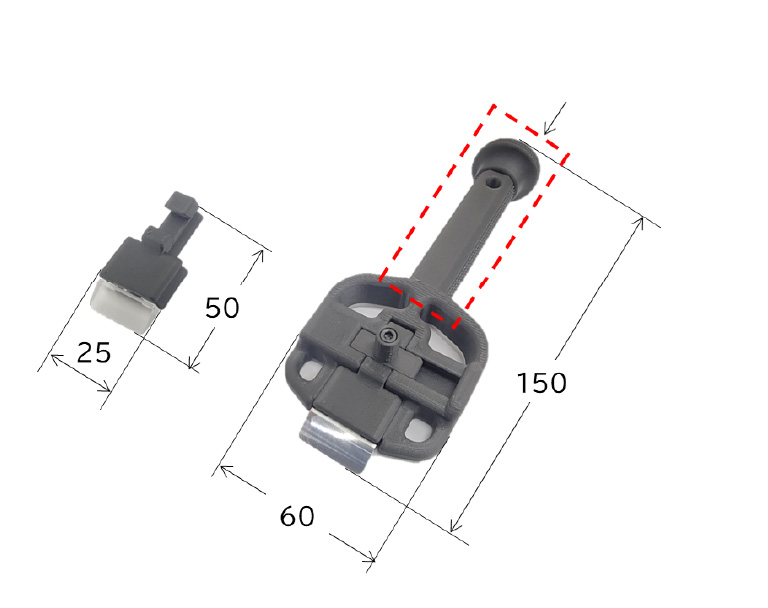

Size (mm)
See diagram
Weight (g)
Cutting edge material
A7075 series aluminium alloy
