Spring type for crossholes
For cross holes
A unique deburring tool from a special tool manufacturer!
Optimal cutting edge and compression mechanism
Removes burrs from cross-holes quickly, effectively, and cleanly
Deburring multiple cross-holes simultaneously
Effective burr removal by compression mechanism
Prevents scratches on the inner diameter with special cutting edge shape
For cross holes
Amazing facts!
── Introducing ideas and technologies ──

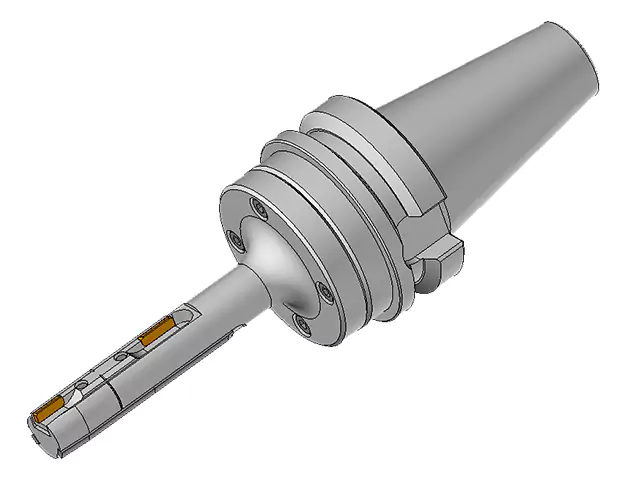

The spring-type deburring holder incorporates a specially shaped cutting edge and compression mechanism.
It contributes to cycle time reduction by simultaneously deburring multiple holes to accommodate variations in the inner diameter of the workpiece.
It also has a guide pad to stabilize the cutting performance of deburring.
This is the point!

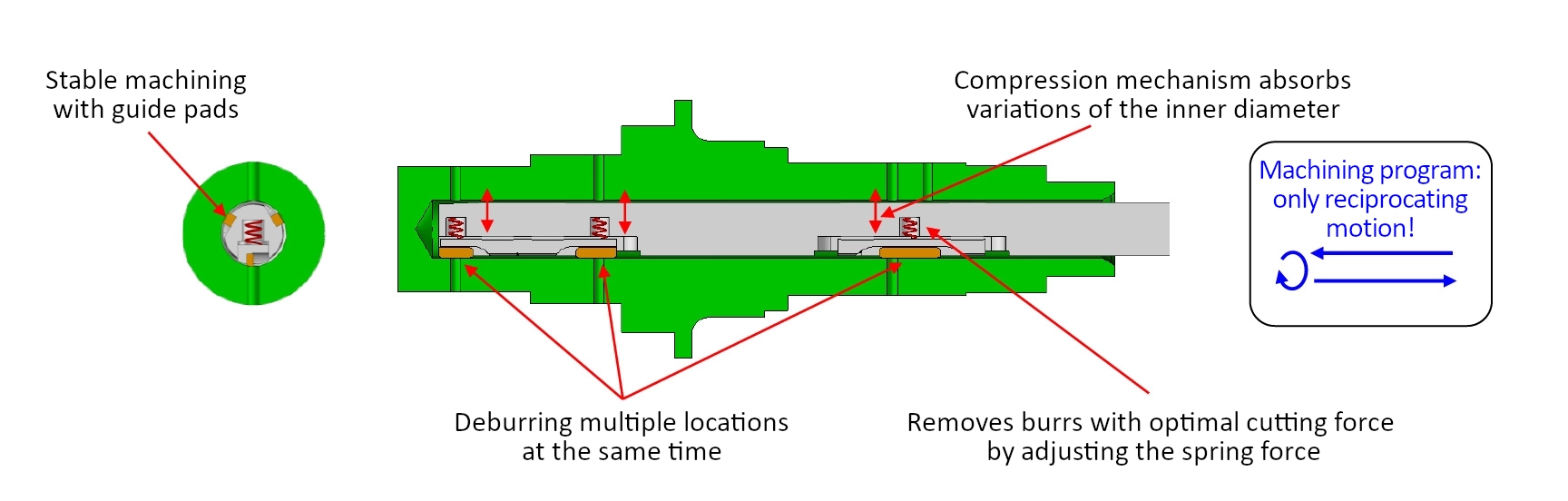

Structure of the spring type deburring holder
Excellent!
Cutting edge shape

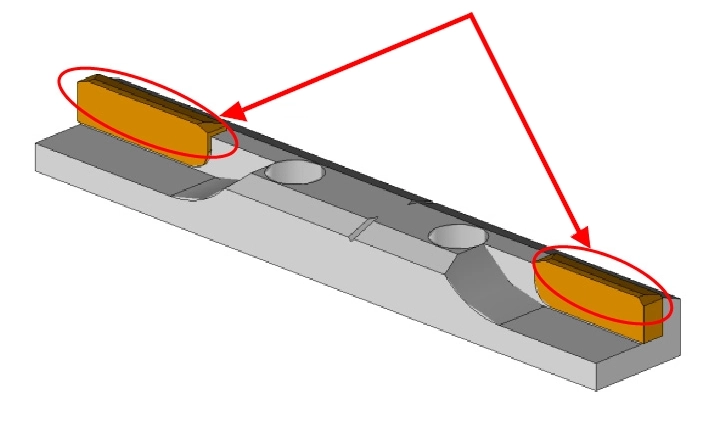

The special shape of the cutting edge prevents scratching on the inner diameter of the workpiece
Development / product concept
“Current status and challenges”
- Deburring of cross-holes in shafts and other parts required a lot of machining time because each hole was removed manually or by NC machines using brushes or cutters.
- The brush and cutter caused problems with burr residue due to variations in the inner diameter of the workpiece.
“Development points”
- The “Spring Type Deburring Holder” uses a special cutting edge shape and compression mechanism to simultaneously remove burrs from multiple holes with only a reciprocating motion, thereby reducing cycle time.
Product specifications
- Tool specifications
Tool name
Spring type deburring holder
(for cross-holes)
Target process
Shaft (cross hole) etc.
Work material
Steel or cast iron recommended
Setting diameter
ø16 mm ～
Standard conditions
Spindle speed: n = 250 min-1
- Applicable workpiece shape
Burr generation – all of them needs deburring

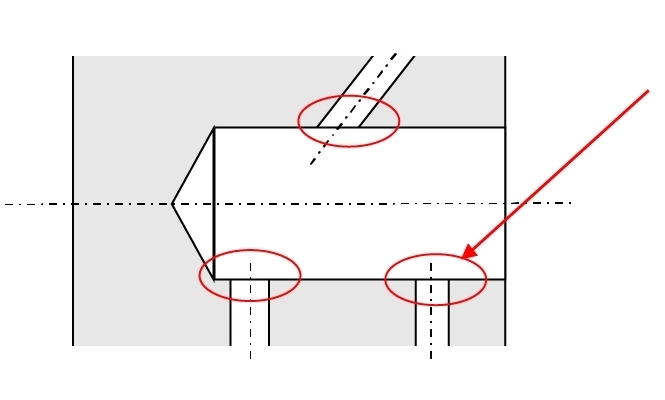

Straight hole

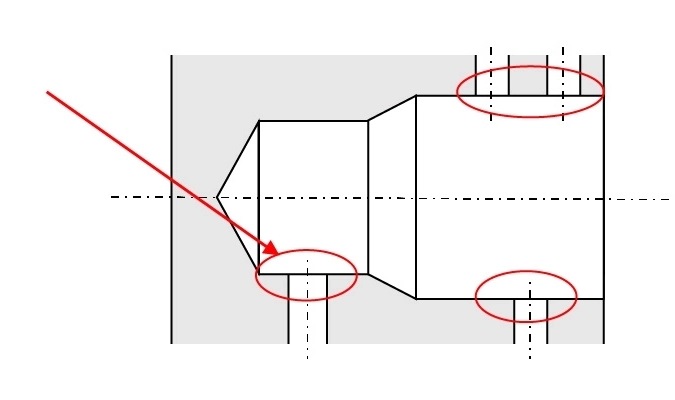

Step hole
