Vibration analysis diagnostic service
Improved productivity by solving vibration problems!
Identify the cause of chatter
Analysis and diagnosis service to propose optimal machining solutions
Identify the cause of chatter by hammering
Proposal of highly stable machining conditions
Proposal of optimal tool geometry and chatter suppression damper
Amazing facts!
── Introducing ideas and technologies ──
Vibration analysis and diagnosis service is a service that actually performs hammering (impulse response analysis) to understand the characteristics of vibration, identify the causes of chatter, and suppress chatter during machining.
We also propose highly stable machining conditions and tool and jig shapes that suppress chatter.
Service process

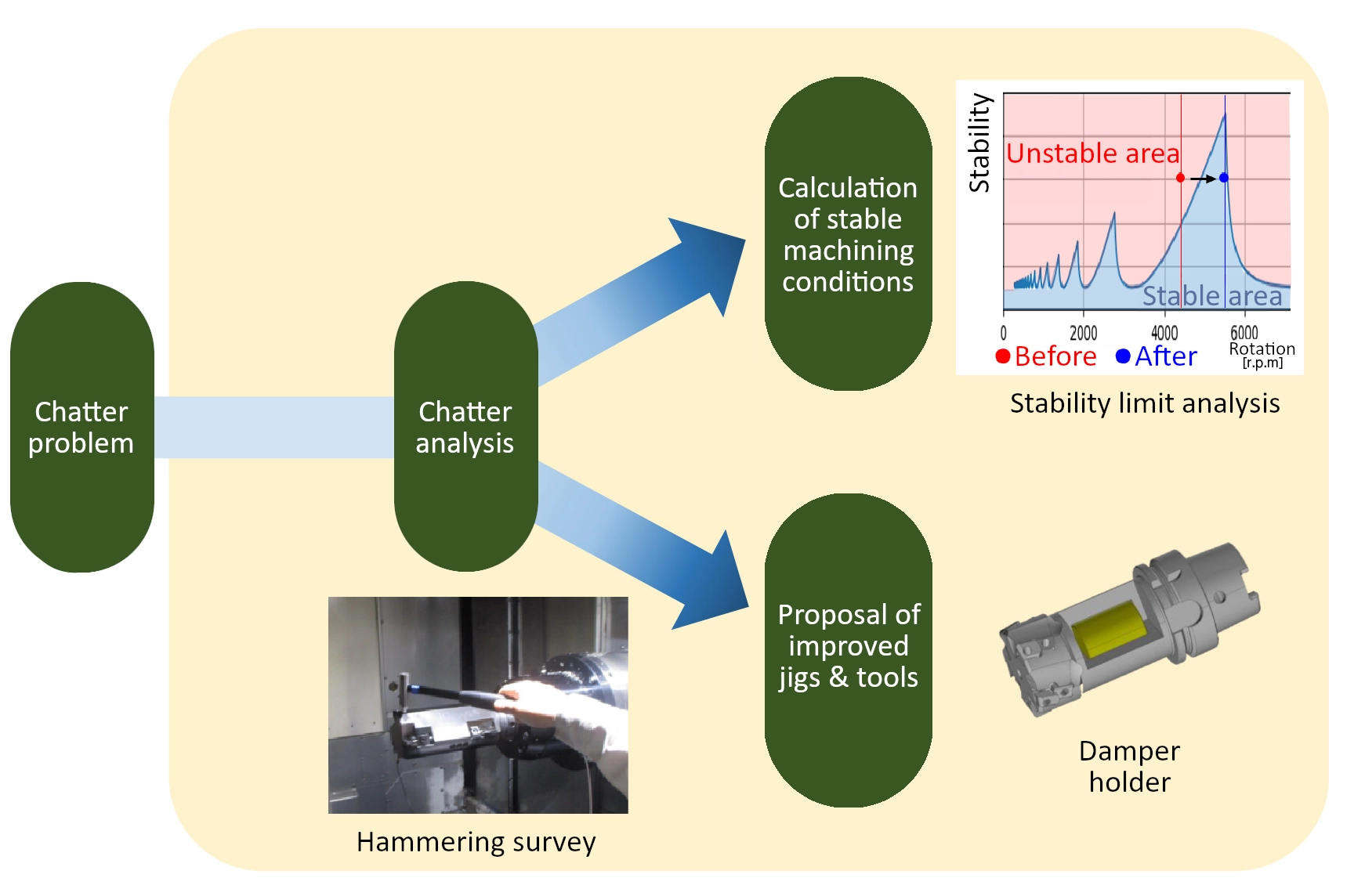

Support from vibration analysis and diagnosis to technical proposals
Chatter cause investigation
-
Vibration measurement during machining

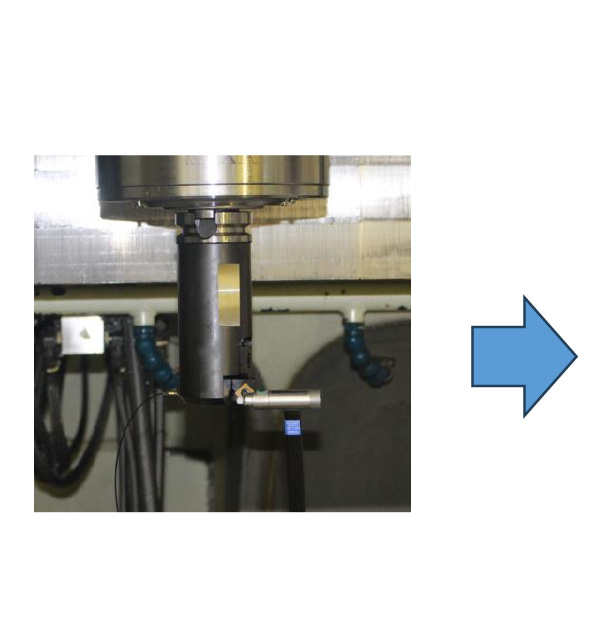

An accelerometer is attached to the workpiece to measure vibration during machining.
Chatter occurs
Hammering survey

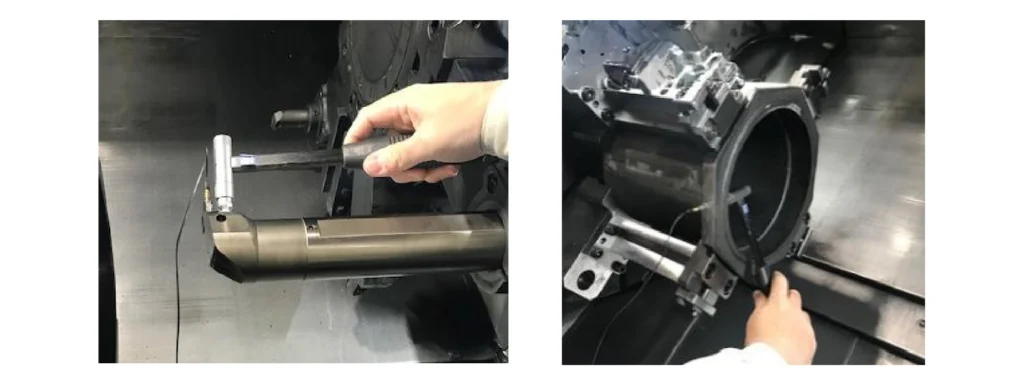

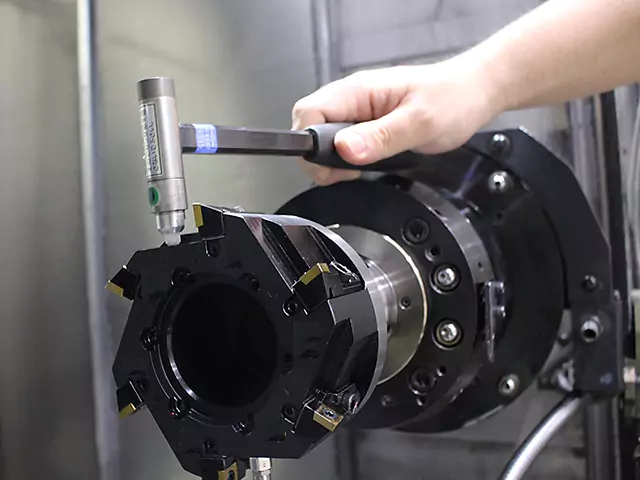

Perform hammering (impulse response analysis) to identify the cause of chatter.
Tool
Work
Calculation of stable machining conditions
Using the results of hammering survey, we perform stability limit analysis and propose machining conditions with high stability against chatter. Eliminates the need for machining trials under vibrating conditions and extensive evaluation man-hours and preparation of workpieces for testing.
Hammering survey

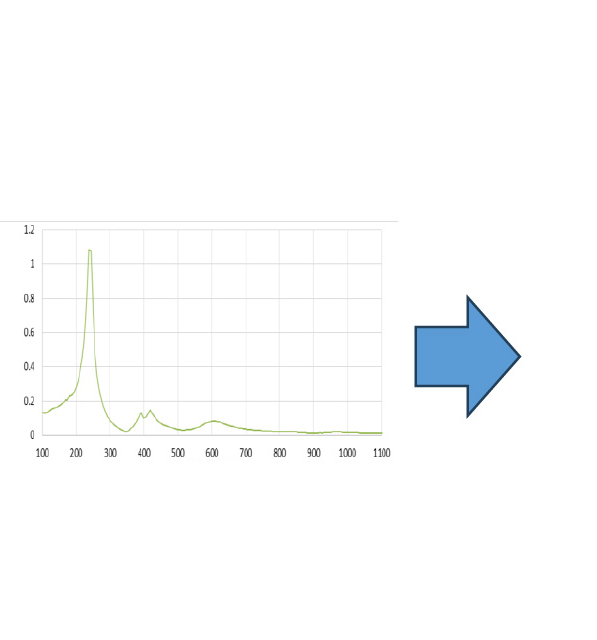

Compliance

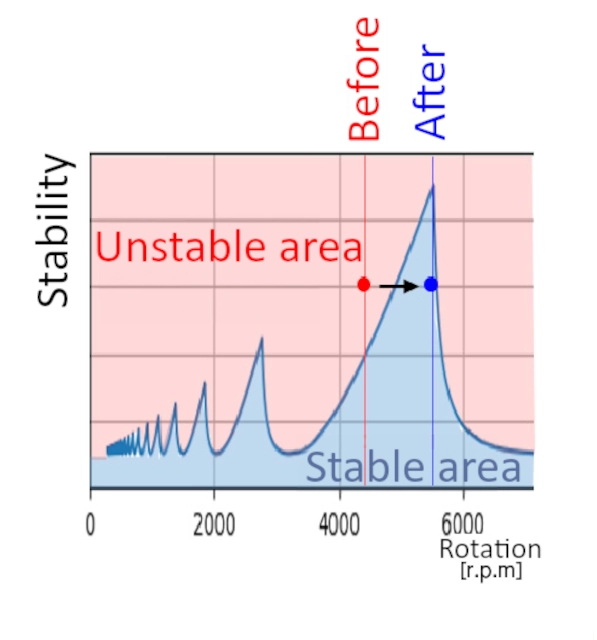

Stability limit analysis
Proposal of improved tool jig
Based on the results of vibration analysis, we propose tools and jigs with high tool rigidity and vibration damping.

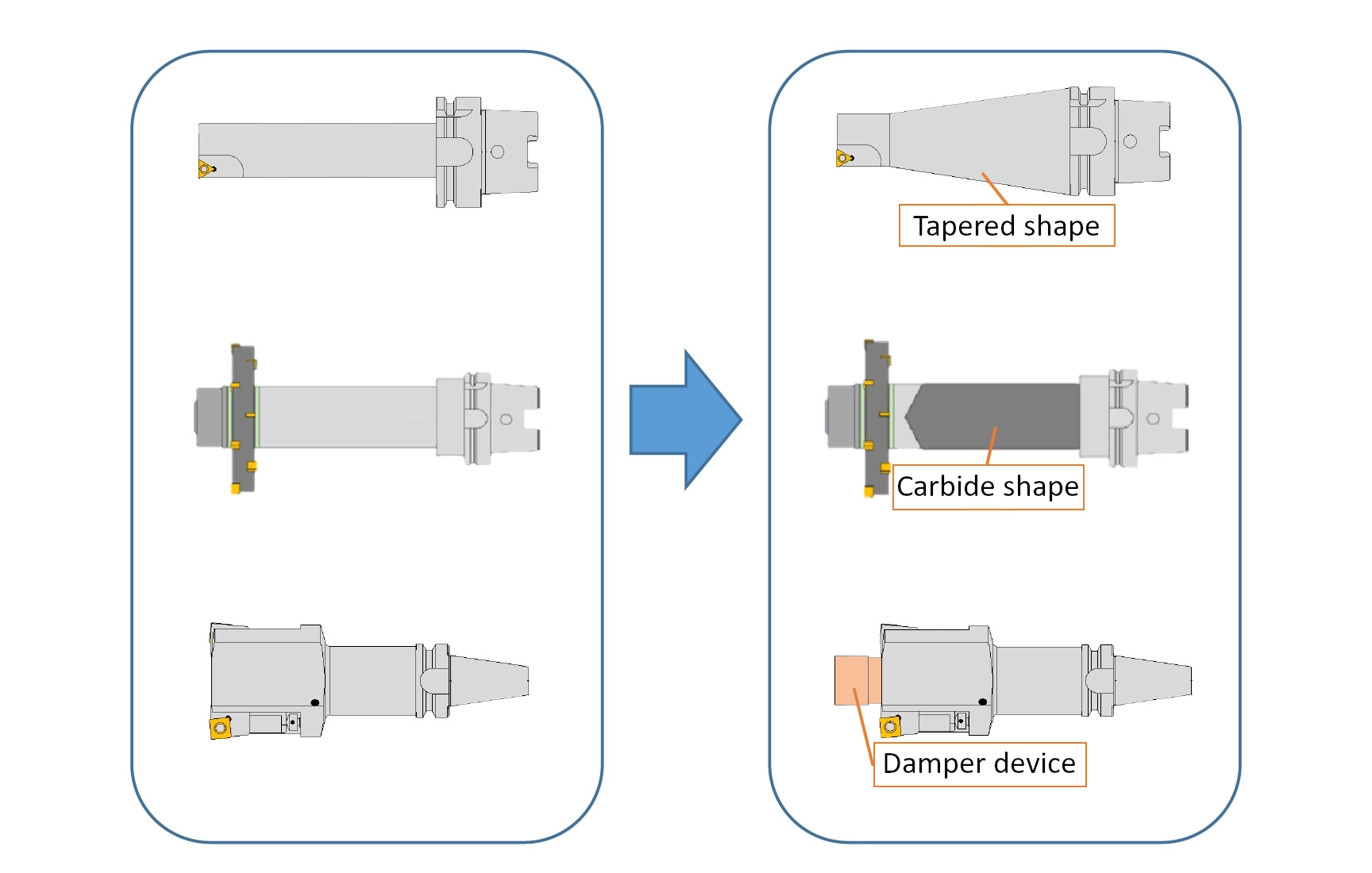

Example tool shapes

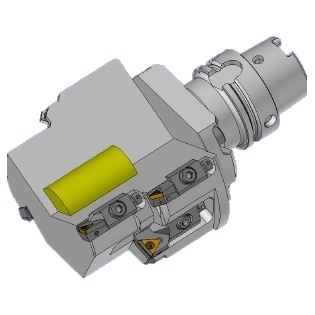

Before improvement

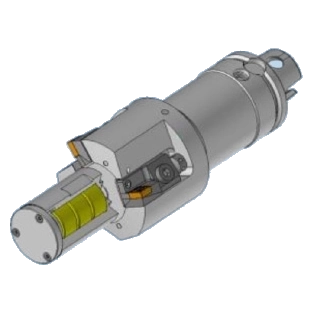

After improvement
- Tapered shapes have higher rigidity
- Carbide shapes have increased mass
- Damper device improves by damping effect
Problem solving examples
①

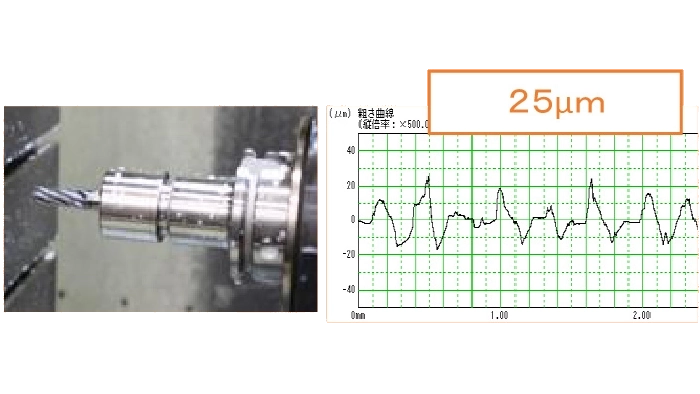

Chatter causing surface roughness problem
Problem
“Chatter occurs and surface roughness worsens.”
Solution

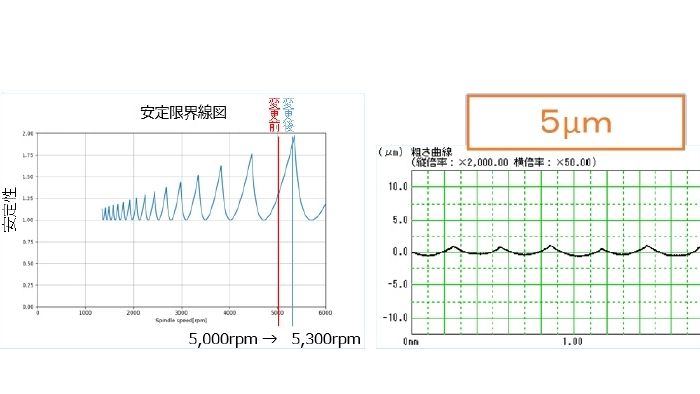

We calculated stable machining conditions and eliminated chatter.
②

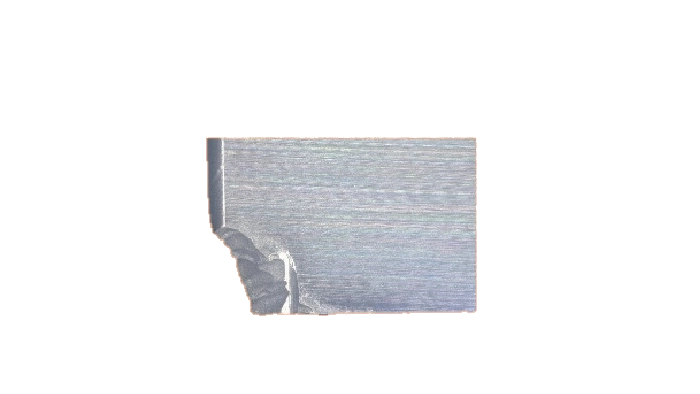

Chatter causing cutting tool edge damage
Problem
“Chatter occurs and cutting edge is damaged frequently, increasing the cost of replacing inserts.”
Solution
We equipped the tool with a damper to suppress chatter and eliminate defects. For details, see our product page.
③

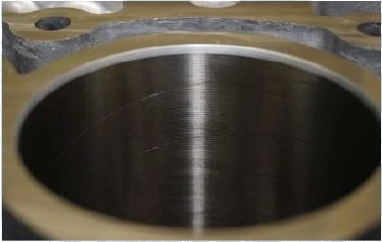

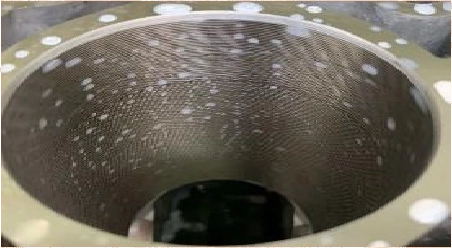

Chatter causing roundness problem
Problem
“Chatter occurs and the roundness deviates from the requirements.”
Solution
We equipped the tool with a damper to improve damping performance and achieve roundness within requirements. For details, see our product page.
