Deep hole gundrills

Resolving tool troubles through perfect tool engineering

Customised gundrills

Outer diameter range ø1.6 - 60 mm

Single flute, Double flute, Solid and step gundrills

PCD gundrills, Gunreamers

Amazing facts!

── Introducing ideas and technologies ──

Chungjin Engineering Co., Ltd.  from South Korea is a professionally manufacturer of Gundrills and Gunreamers for 20 years since its establishment in 1993. Based on the technical skills accumulated in cutting tool manufacturing over the years, Chungjin have successfully developed their own technology to produce excellent products by incorporating them into the gundrill developed for processing holes in gun barrels with the aim of developing localisation.

Chungjin supplies tools to the domestic and overseas markets with the best quality and technology, and after starting exports, currently exporting to major markets such as Japan, China, and other Asian countries. Through endless product development and efforts, Chungjin obtained a certificate for their R&D department in 2012 to further devote themselves to product research and development, and as a result, succeeded in manufacturing the first PCD gundrill in South Korea and received the Vision Enterprise Certificate Award of the year.

Chungjin can customise gundrills from a minimum outer diameter of ø1.9 to a maximum outer diameter of ø60, and manufacture double flute, step gundrills, gun reamers, gundrill guide bushes, rest bushes, rubber bushes, brass bushes, etc. along with gundrills. In addition, Chungjin solves problems through tool engineering when tool troubles occur.

All employees of Cheongjin Machinery are promised to do their best to create the best service for customers, implement the best quality in the industry, and manage customer-centred company in accordance with the company’s management policy.

Specification

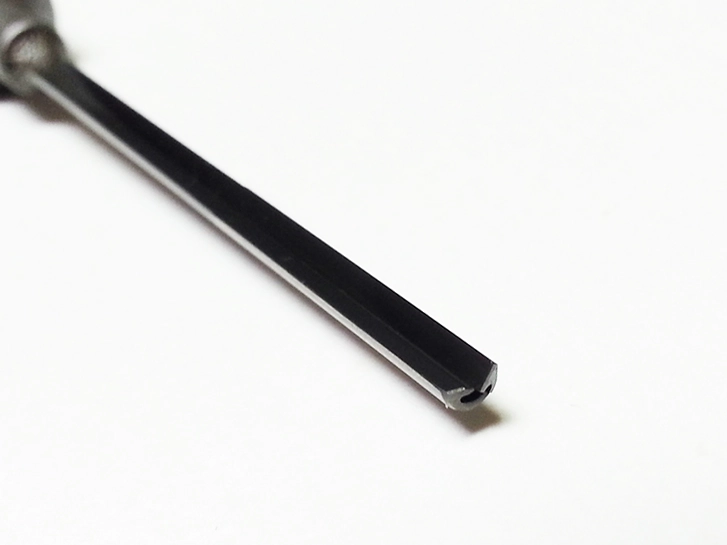

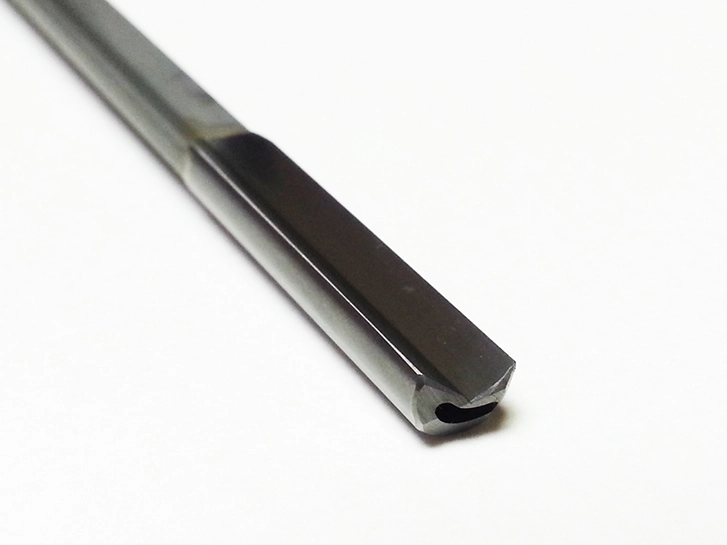

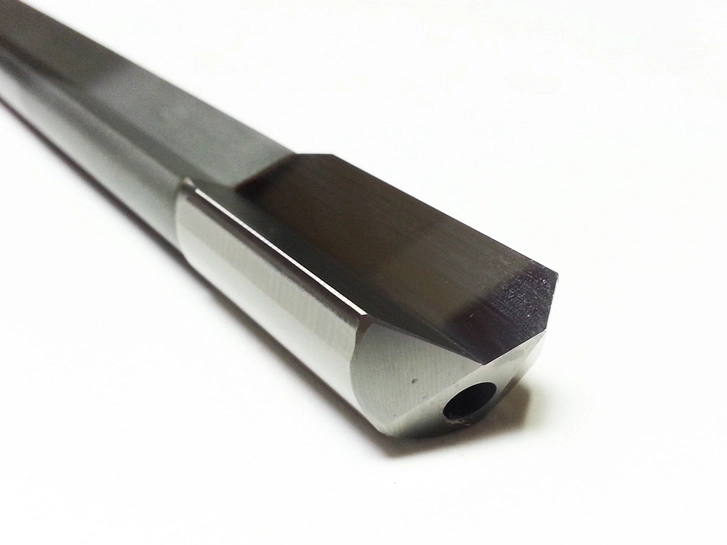

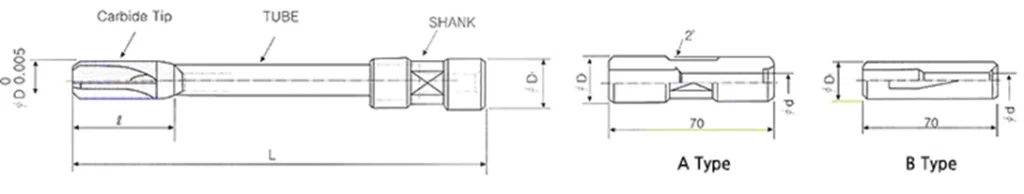

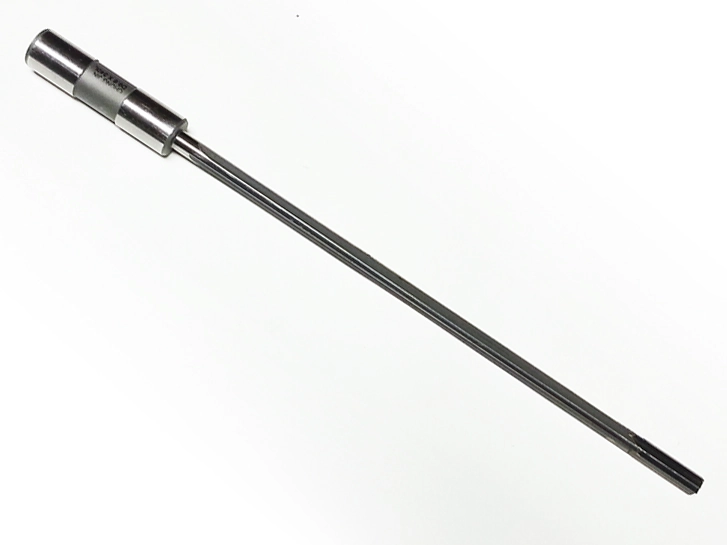

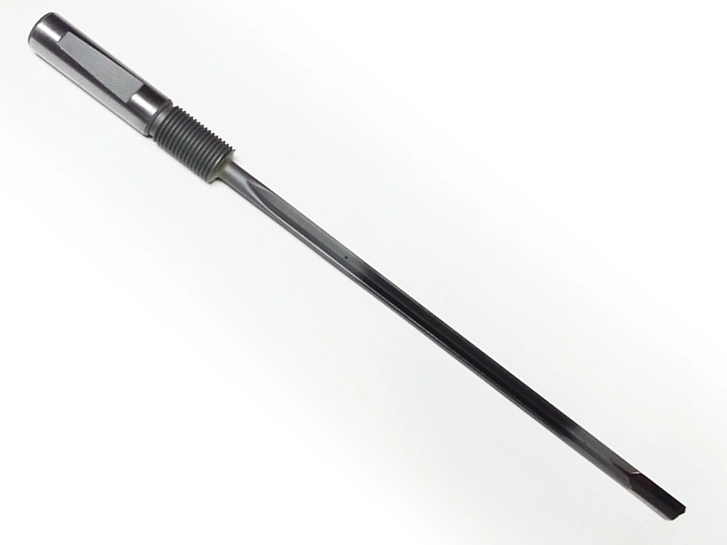

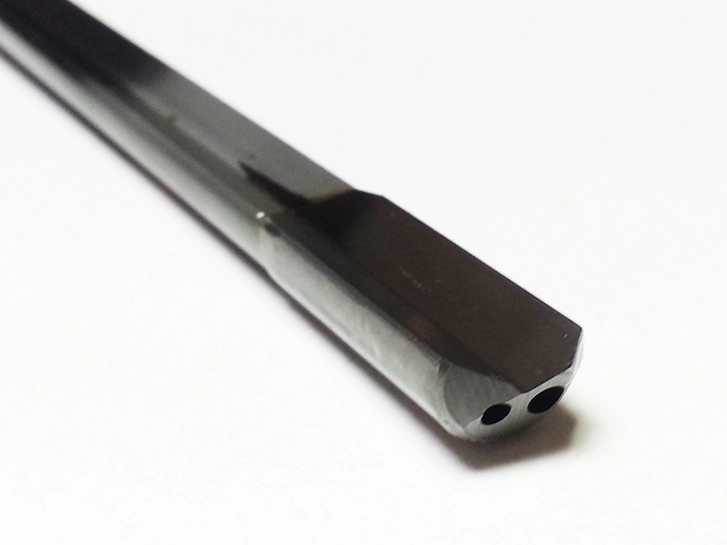

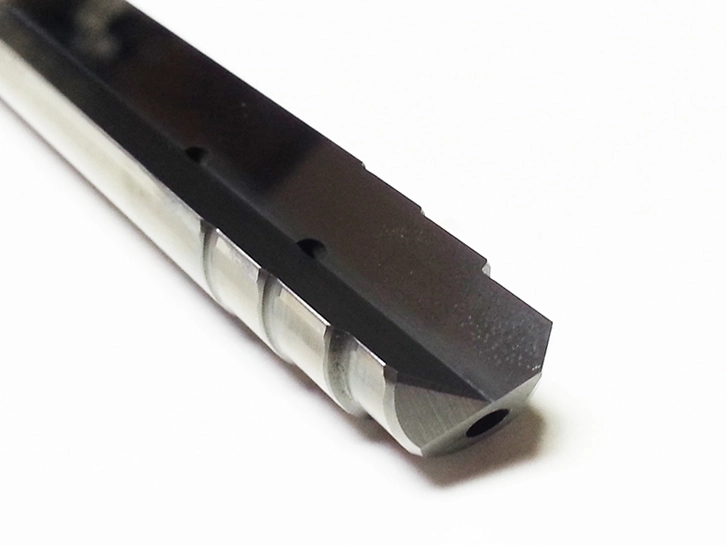

Single flute gundrills with brazed tungsten carbide tip

Sizes

DRILL Outside Diameter
(ØD 0.005) [mm]
Carbide tip length
(ℓ) [mm]
Total
length
(L)
1.9~3.0 Less15As per order request
3.1~5.0 Less20
5.0~7.1 Less25
7.0~10.0 Less30
10.1~13.5 Less35
13.6~16.5 Less40
16.6~21 Less45
21.1~25 Less50
25.1~30 Less55
30.1~6060
DRIVER SIZE
based on
DRILL Outside Diameter
(ØD) [mm]
DRIVER
Outside Diameter
(ØD) [mm]
DRIVER
Inside Diameter
(Ød) [mm]
6.0 Less12.704.0
6.1~12 Less19.055.0
12.1~20 Less25.406.5
20.1~25 Less31.758.0
25.1 and over38.1010.0

Tip shape

Tip shape

Outer
Cutting
Angle
(α °)

Inner
Cutting
Angle

(ß °)

Work material

Standard
type

42

20

Low carbon steel,
Aluminum alloy

30

20

Carbon steel,
Alloy steel

Tip name

DRILL diameter
(ØD) [mm]
Oil Clearance
(G) [mm]
3.50.7
71.1
9.51.3
131.6
161.8
19.02.4
22.02.6
252.7

Cutting condition

Work material

Ø2~6.5 mm

Ø6.5~13 mm

Ø13~19 mm

Ø19~25 mm

Ø25- mm

Cutting
speed
[m/min]

Feed
rate
[mm/rev]

Cutting
speed
[m/min]

Feed
rate
[mm/rev]

Cutting
speed
[m/min]

Feed
rate
[mm/rev]

Cutting
speed
[m/min]

Feed
rate
[mm/rev]

Cutting
speed
(m/min)

Feed
rate
(mm/rev)

Carbon
steel
(Less than
HB200)

60~70

0.010
~0.005

70~80

0.020
~0.030

80~90

0.025
~0.035

80~90

0.030
~0.040

80~90

0.035
~0.045

Carbon
steel
(Over HB200)

50~60

0.007
~0.012

60~70

0.015
~0.025

70~80

0.020
~0.030

70~80

0.025
~0.035

70~80

0.030
~0.040

Alloy steel
(Less than
HB200)

60~70

0.010
~0.005

70~80

0.020
~0.030

80~90

0.025
~0.035

80~90

0.030
~0.040

80~90

0.035
~0.045

Alloy steel
(Over HB200)

50~60

0.017
~0.012

60~70

0.015
~0.025

70~80

0.020
~0.030

70~80

0.025
~0.035

70~80

0.030
~0.040

Normal
cast iron

65~75

0.020
~0.040

70~80

0.030
~0.060

80~90

0.050
~0.080

80~90

0.060
~0.120

80~90

0.080
~0.150

Ductile
Cast iron

45~55

0.010
~0.020

50~60

0.020
~0.030

55~65

0.030
~0.050

60~70

0.040
~0.060

60~70

0.045
~0.080

Aluminium
alloy

100~150

0.020
~0.040

100~160

0.030
~0.060

140~180

0.050
~0.080

140~180

0.060
~0.120

140~180

0.080
~0.150

Copper
alloy

100~120

0.020
~0.040

100~120

0.030
~0.060

120~150

0.050
~0.080

120~150

0.060
~0.120

120~150

0.080
~0.150

Cutting quality

Work material

Roughness of finished surface

Diameter expansion amount

Steel (less than HB200)

Steel (over HB200)

Normal cast iron

Aluminium alloy

Gallery

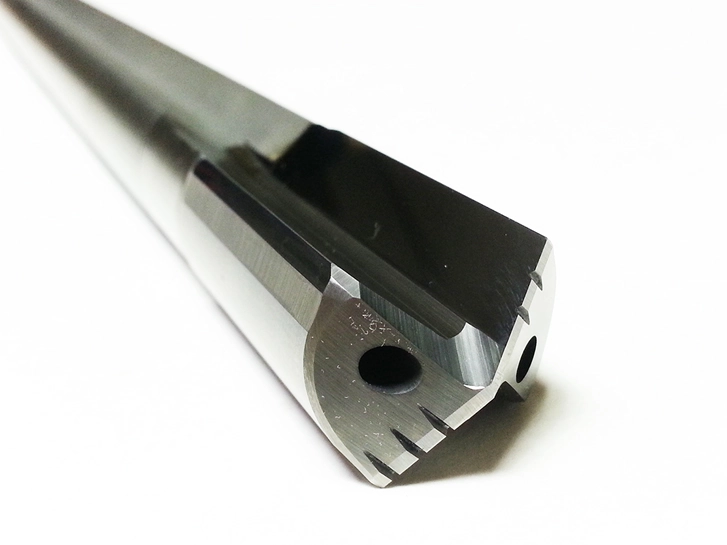

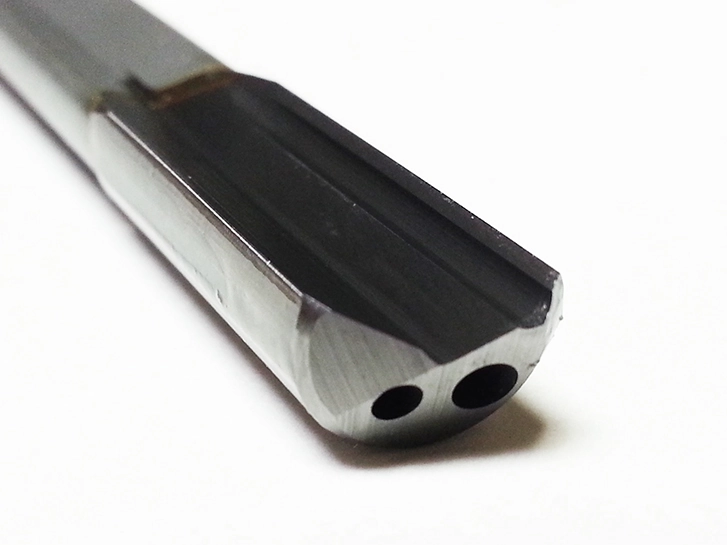

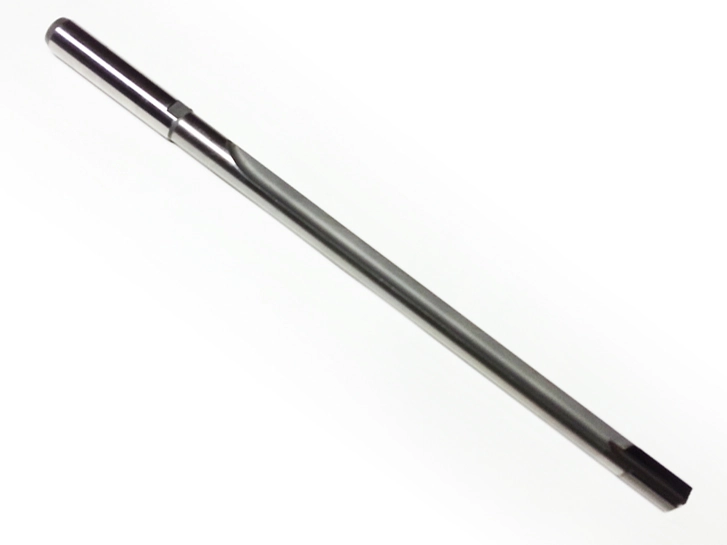

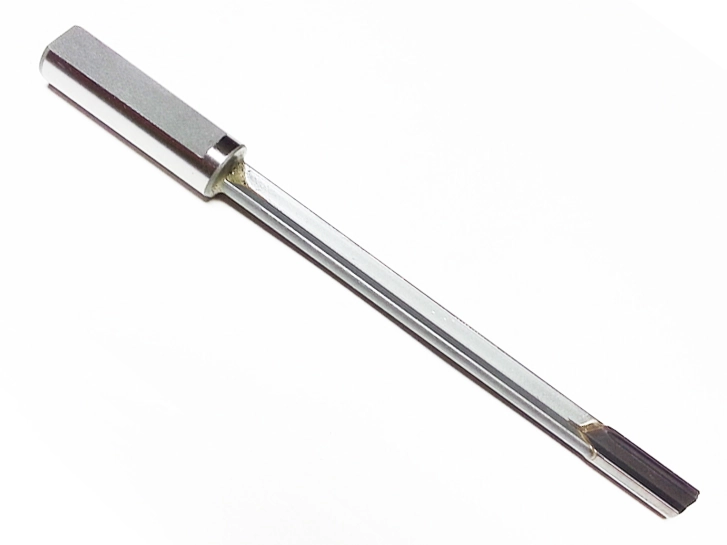

Double flute gundrills with brazed tungsten carbide tip

Sizes

DRILL diameter (ØD) [mm]

Tip length
(ℓ) [mm]

Total length
(L) [mm]

6.0~7.5 Less

15

As per order request

7.6~9.5 Less

20

9.6~12 Less

25

12.1~18 Less

33

18.1~22 Less

40

22.1~25 Less

45

25.1~

50

DRIVER SIZE based on DRILL
Outside Diameter
(ØD) [mm]

DRIVER
Outside Diameter
(Ød) [mm]

DRIVER
Inside Diameter
(ØD1) [mm]

6.0~12.0 Less

19.5

5.0

12.0~20.0 Less

25.40

6.5

20.0~25.0 Less

31.75

8.5

25.0~30.0 Less

38.10

※ The above table may be applied differently depending on the characteristics of the processed work material.

Cutting conditions

Work material

Ø6~8 mm

Ø8~13 mm

Ø13~19 mm

Ø19~25 mm

Ø25~ mm

Cutting
speed
[m/min]

Feed
rate
[mm/rev]

Cutting
speed
[m/min]

Feed
rate
[mm/rev]

Cutting
speed
[m/min]

Feed
rate
[mm/rev]

Cutting
speed
[m/min]

Feed
rate
[mm/rev]

Cutting
speed
[m/min]

Feed
rate
[mm/rev]

Normal
cast iron

55~75

0.050
~0.100

60~80

0.060
~0.120

70~90

0.080
~0.160

70~90

0.120
~0.180

80~100

0.150
~0.250

Ductile
cast iron

45~60

0.040
~0.060

55~70

0.060
~0.080

60~80

0.060
~0.100

60~80

0.080
~0.180

65~85

0.100
~0.180

Aluminium alloy

100~150

0.050
~0.100

120~160

0.080
~0.160

150~180

0.080
~0.160

150~180

0.120
~0.200

150~180

0.150
~0.250

Cutting quality

Work material

Roughness of finished surface

Diameter expansion amount

Normal cast iron

Ductile cast iron

Aluminium alloy

Gallery

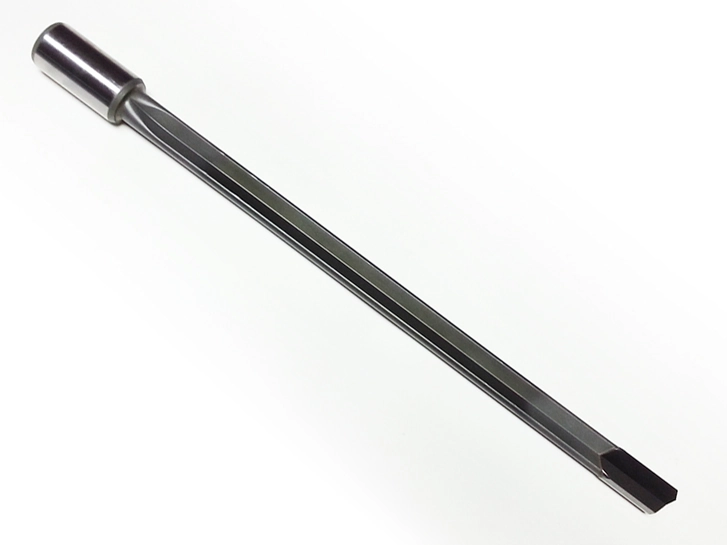

Single flute gundrills with brazed tungsten carbide tip and chipbreaker

Sizes

DRILL
Outside Diameter
[mm]

Bit length
(ℓ) [mm]

Total length
(L) [mm]

6.0~7.0 Less

25

As per order request

7.1~10.0 Less

30

10.1~13.5 Less

35

13.6~16.5 Less

40

16.6~21 Less

45

21.1~25 Less

50

25.1~30 Less

55

DRIVER SIZE based on DRILL
Outside Diameter (ØD) [mm]
DRIVER
Outside Diameter
(ØD) [mm]
DRIVER
Inside Diameter
(Ød) [mm]
6.0~12 Less19.055.0
12.1~20 Less25.406.5
20.1~25 Less31.758.0
25.1 Over38.1010.0

Cutting condition

Gallery

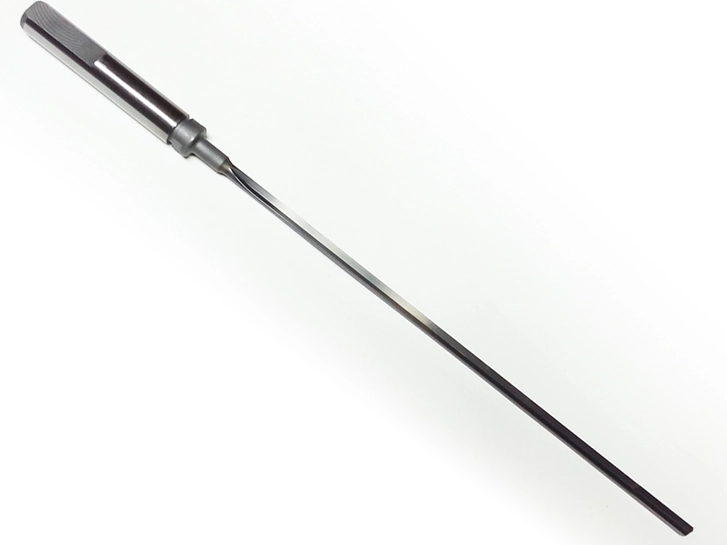

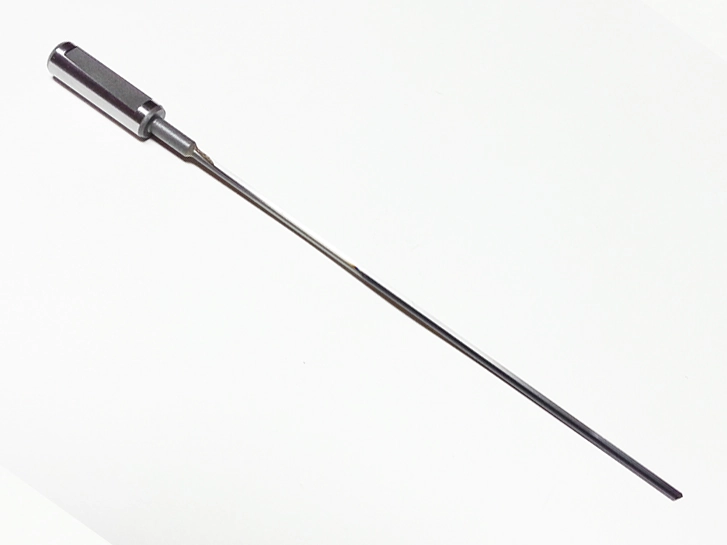

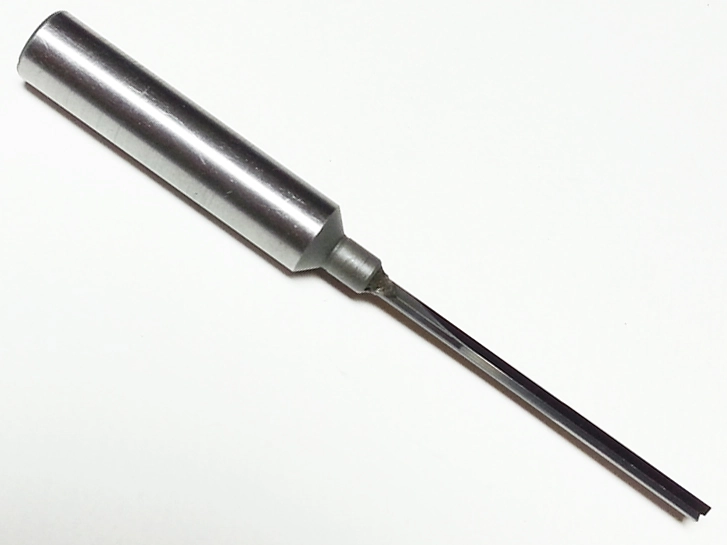

Solid tungsten carbide monoblock gundrills

Made to order

Gallery

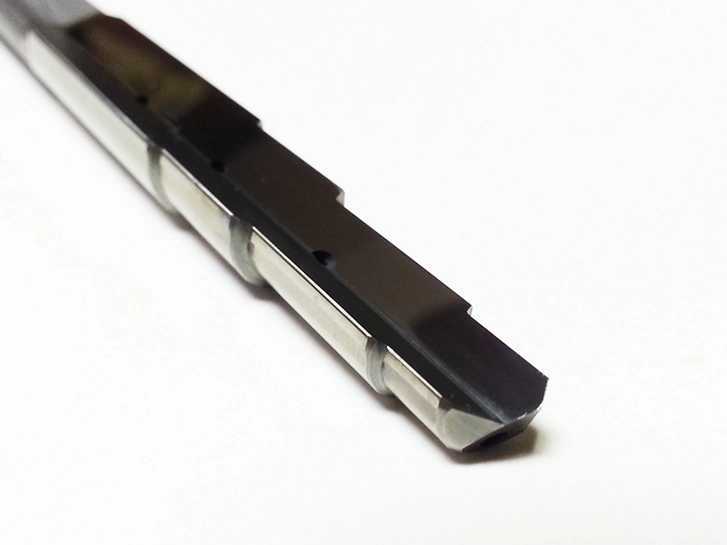

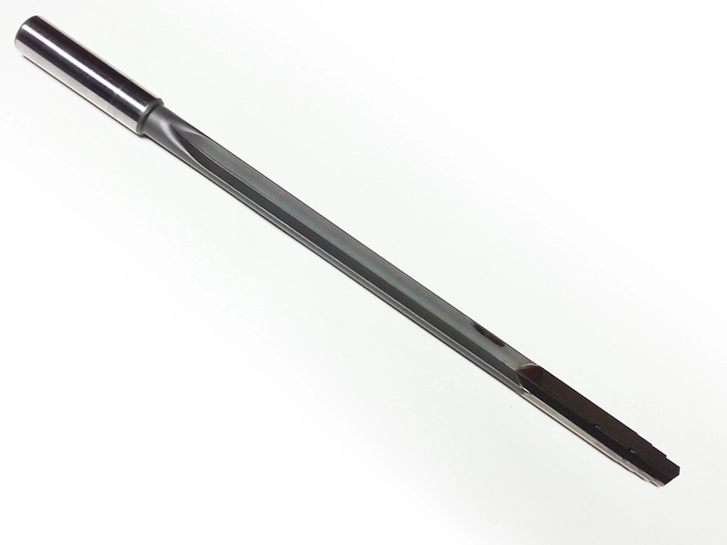

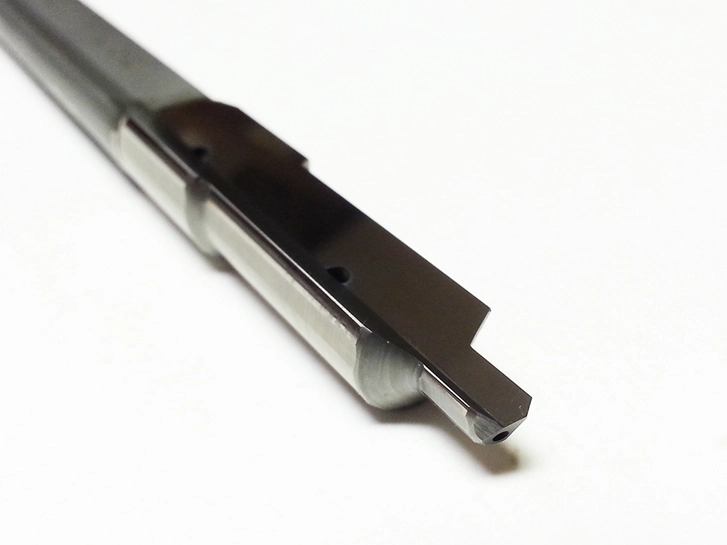

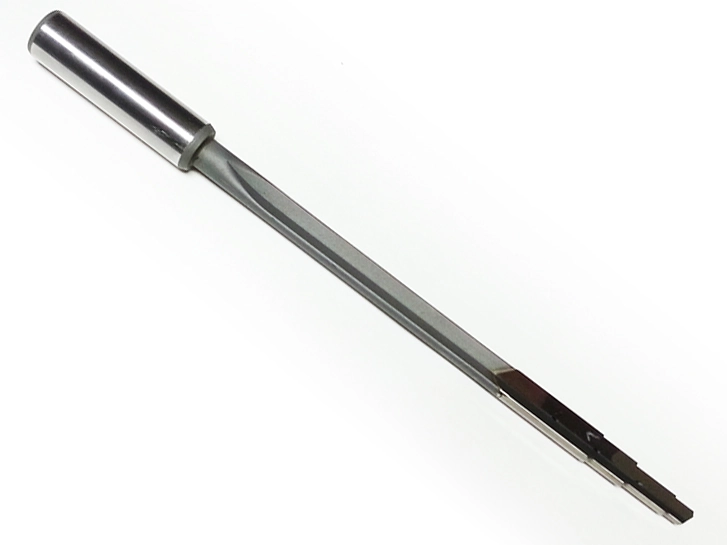

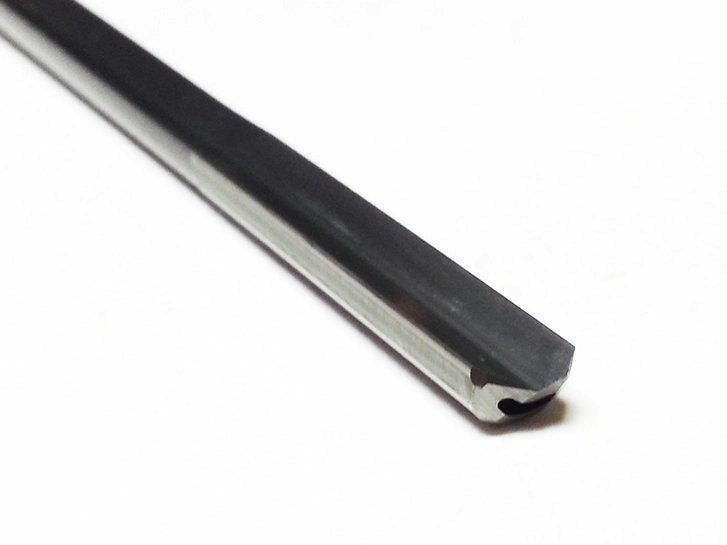

Step gundrills with brazed tungsten carbide tip

Made to order

Gallery

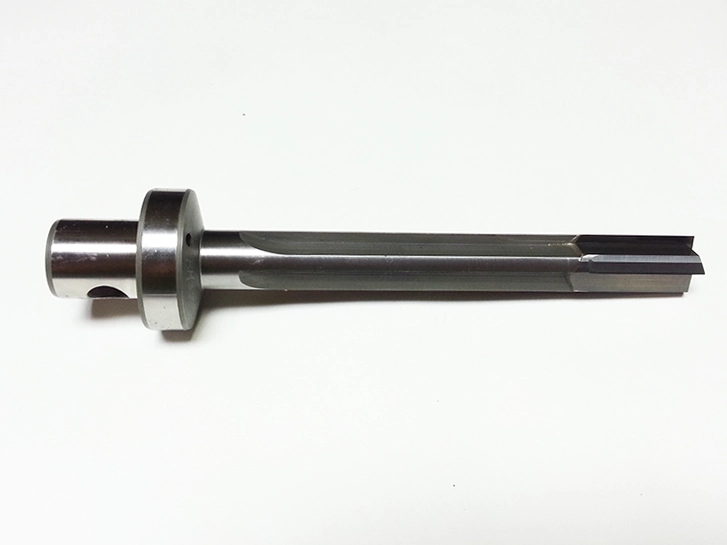

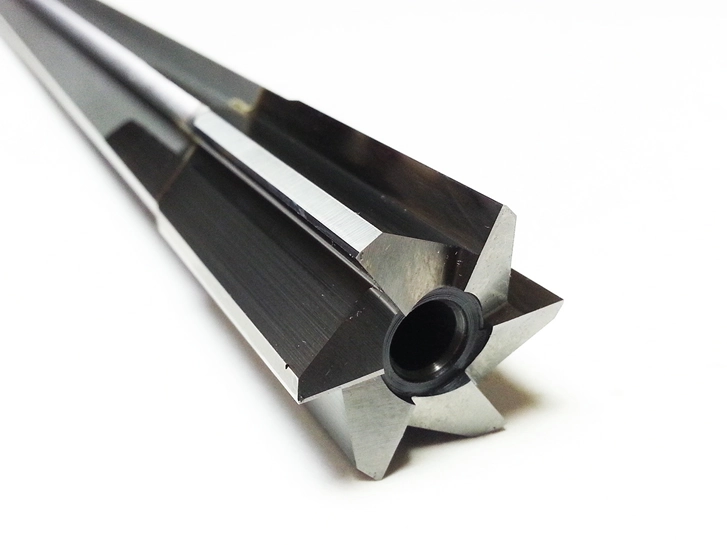

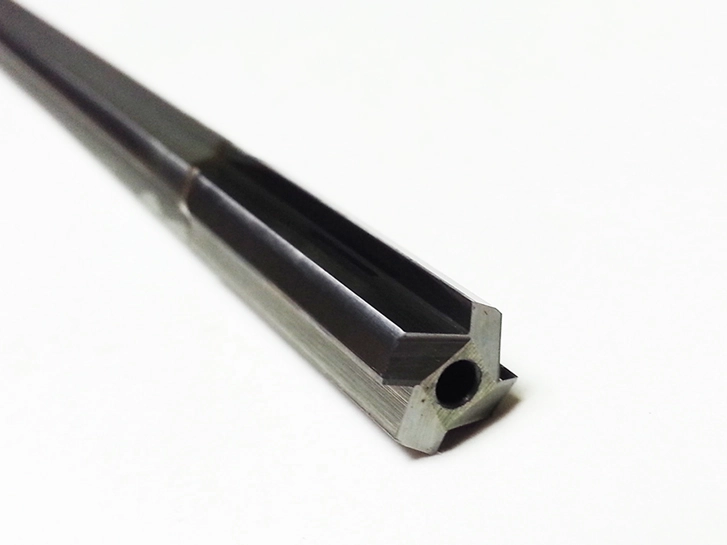

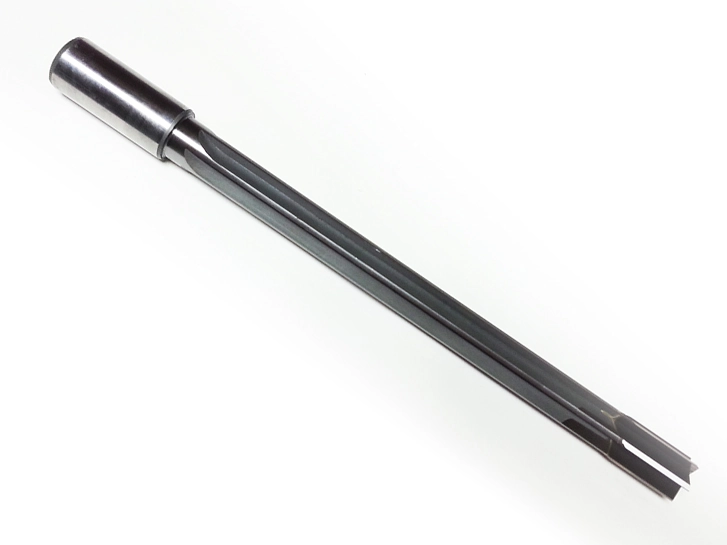

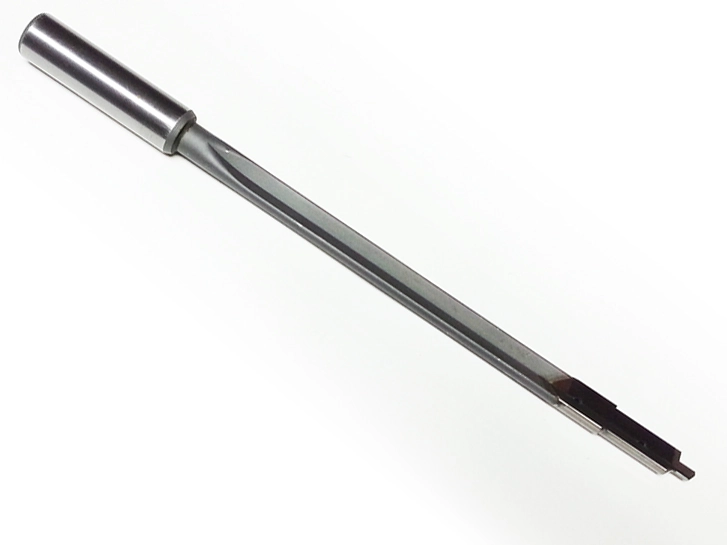

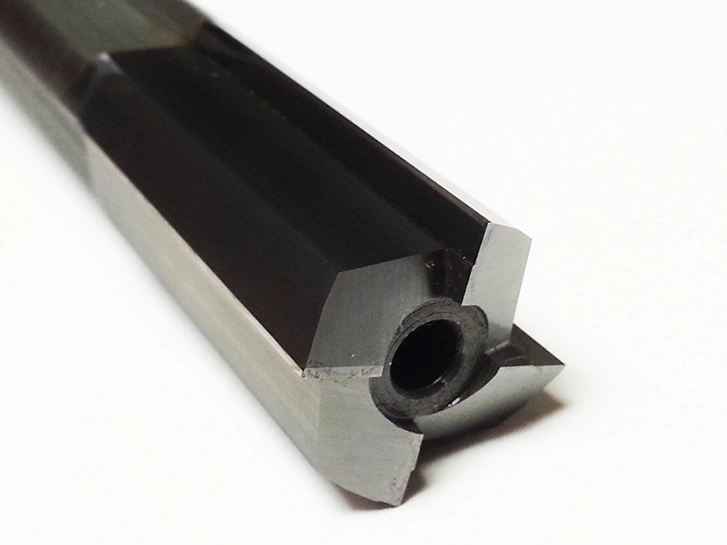

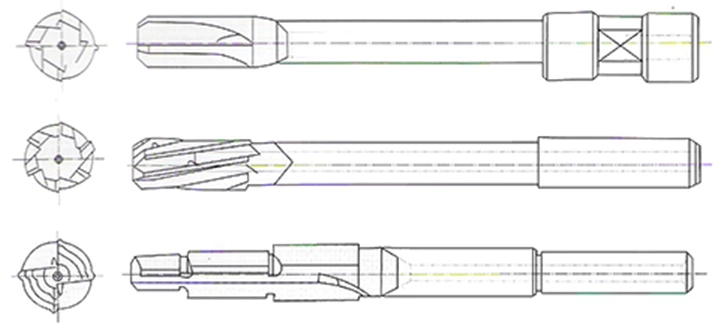

Gunreamers

Made to order

Gallery

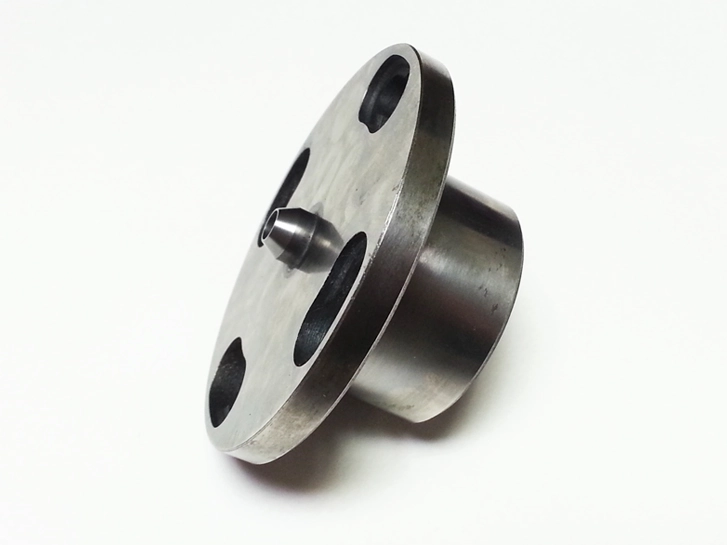

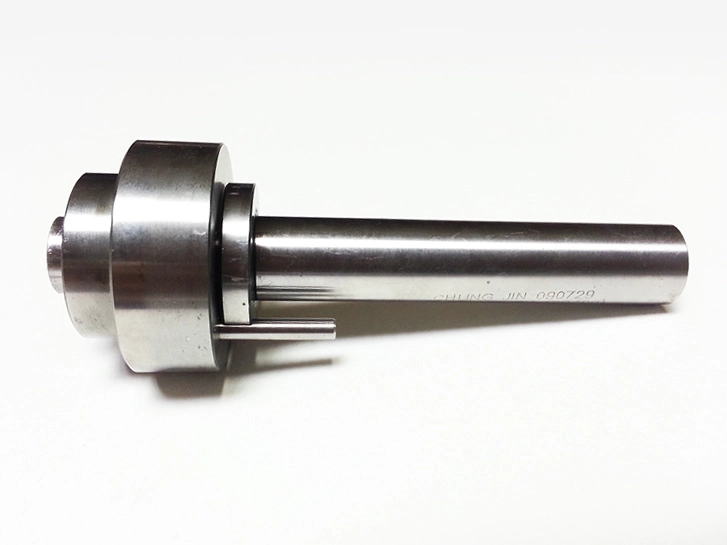

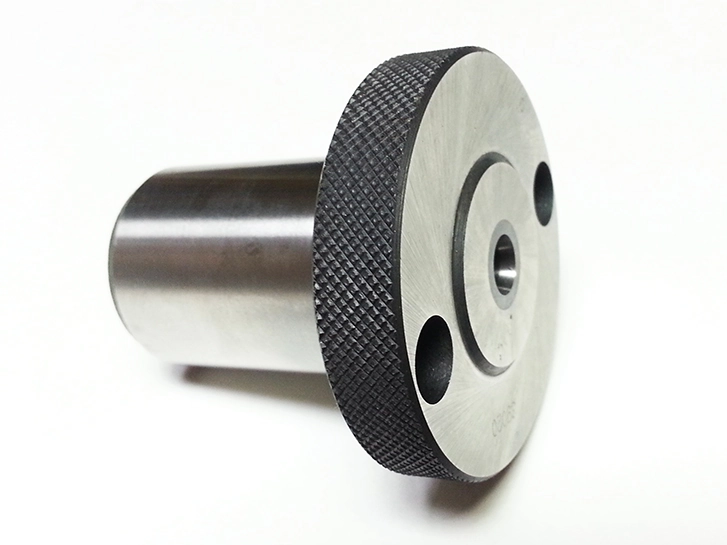

Accessories

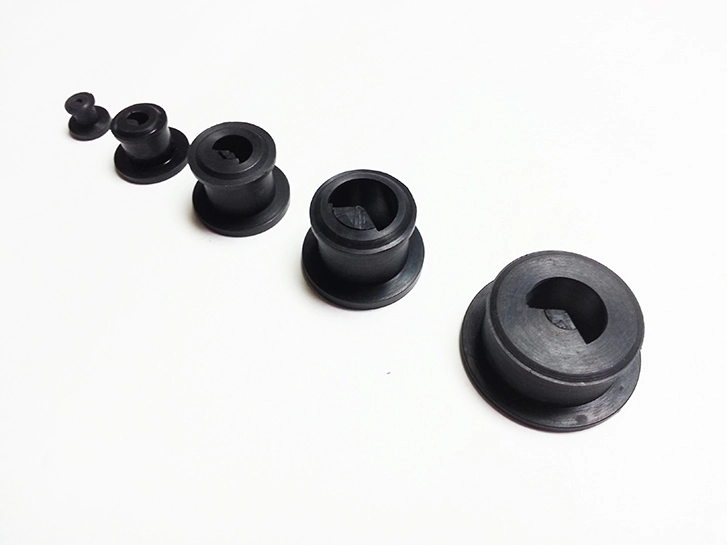

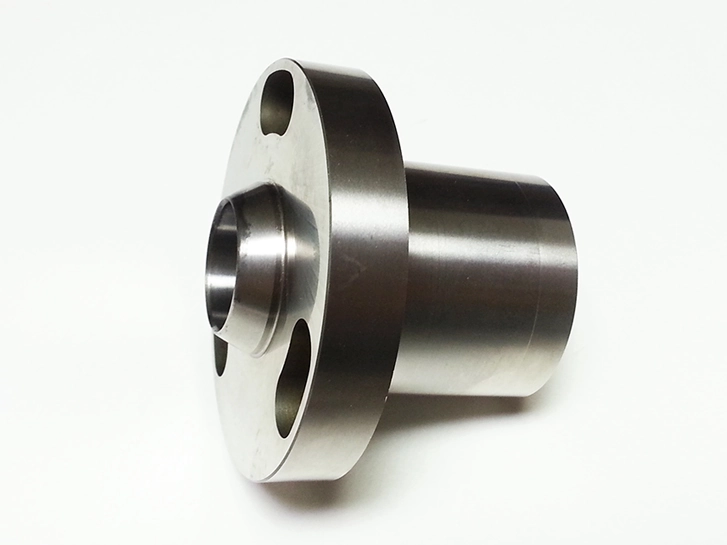

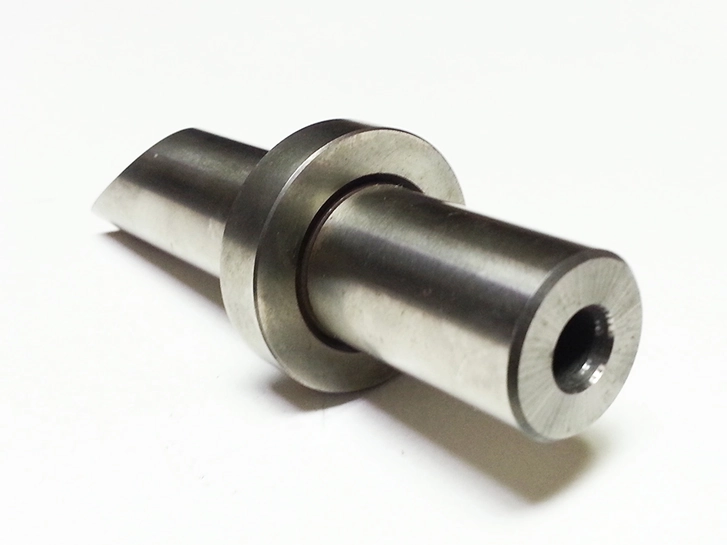

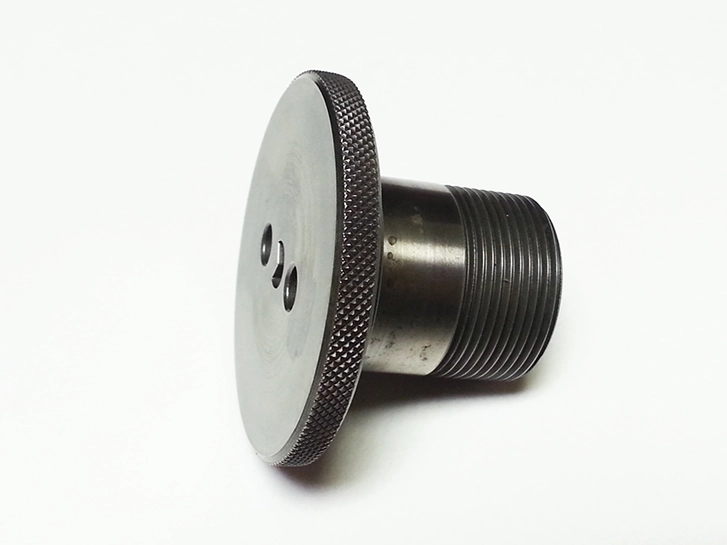

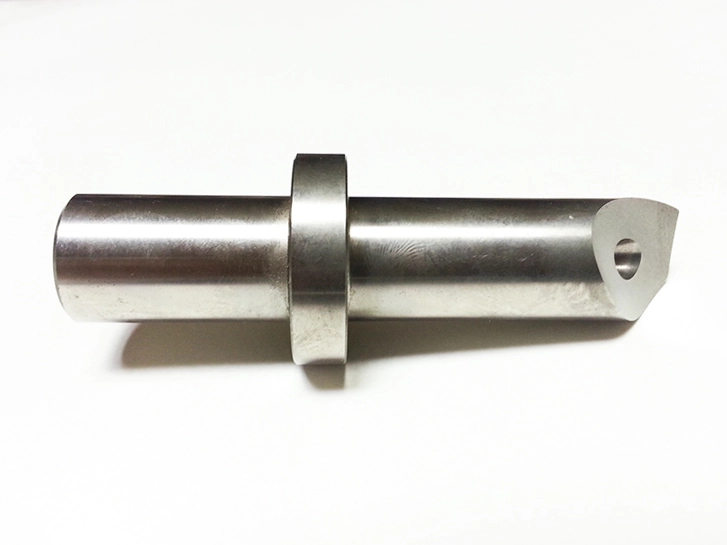

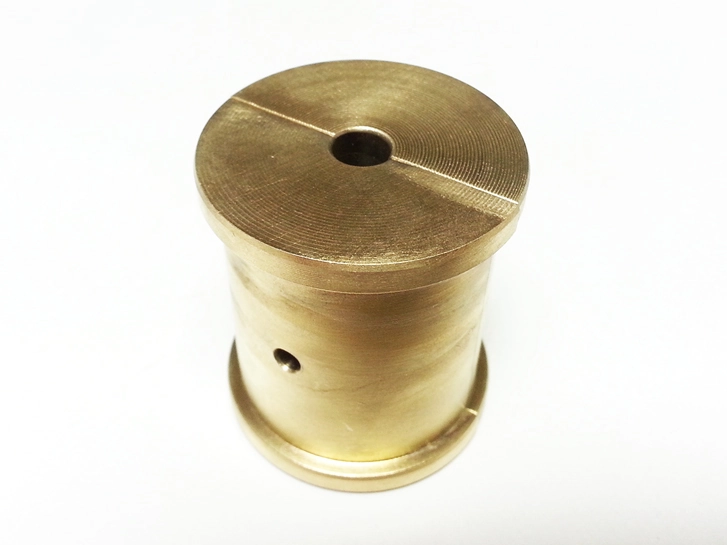

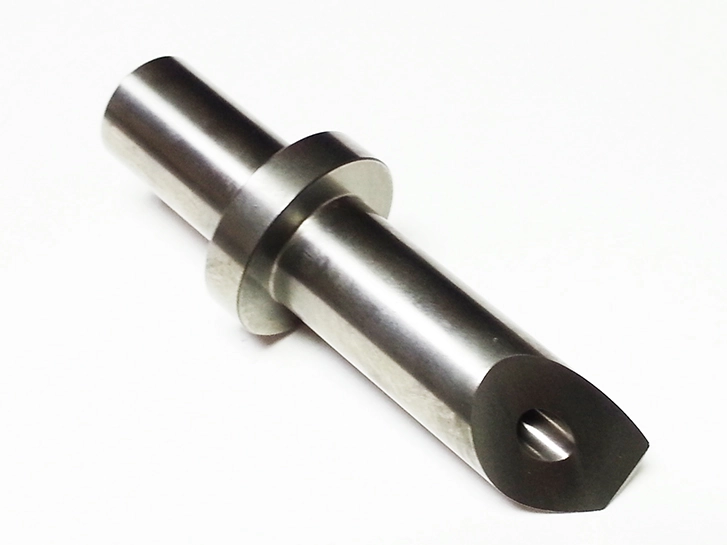

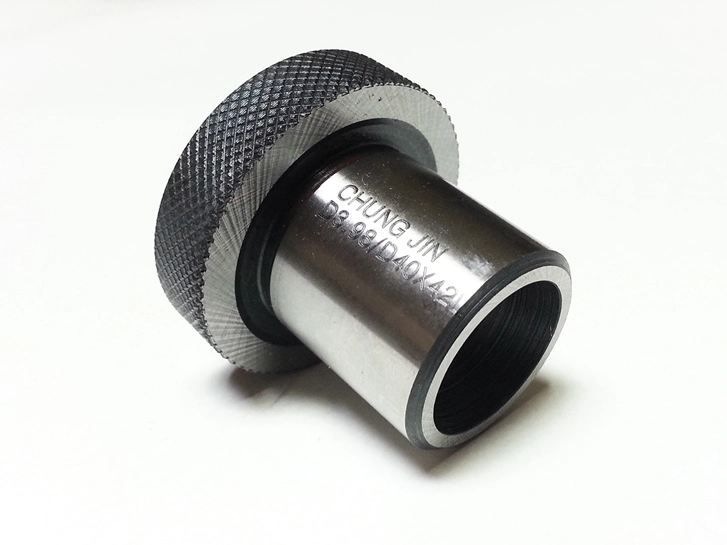

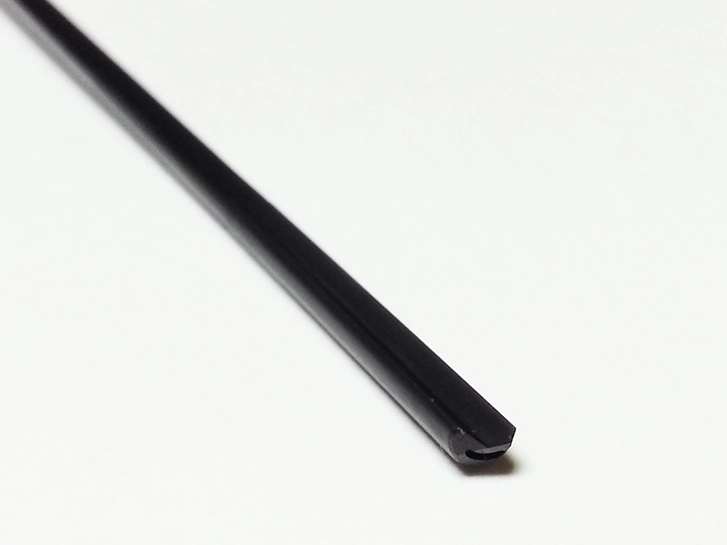

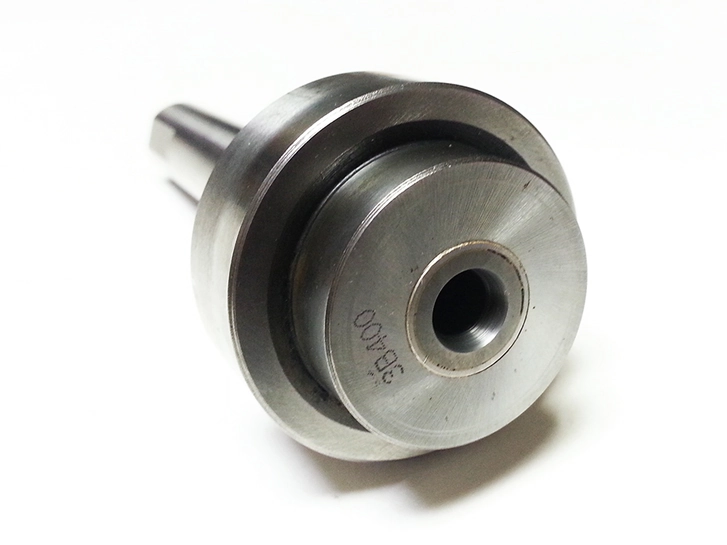

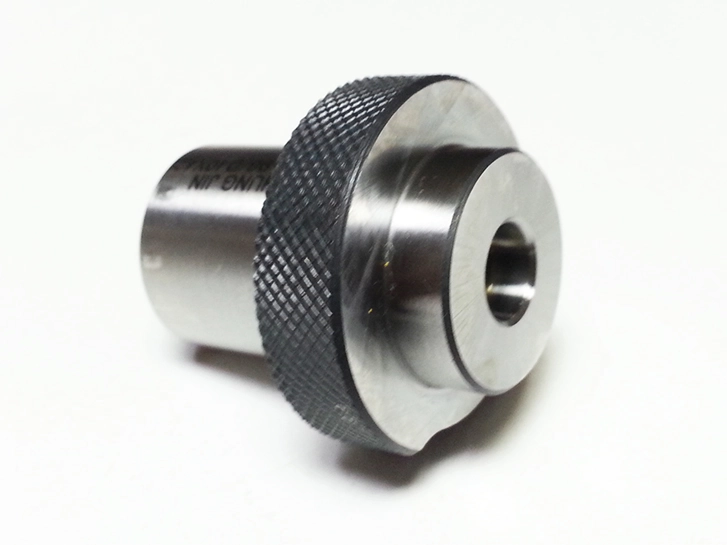

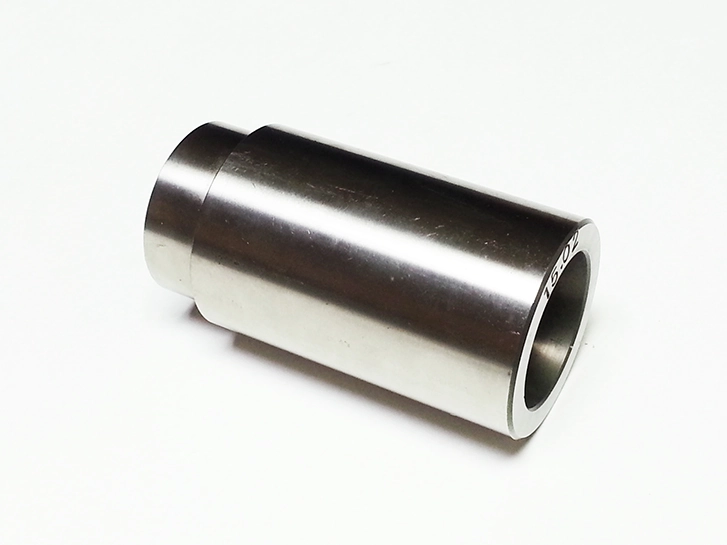

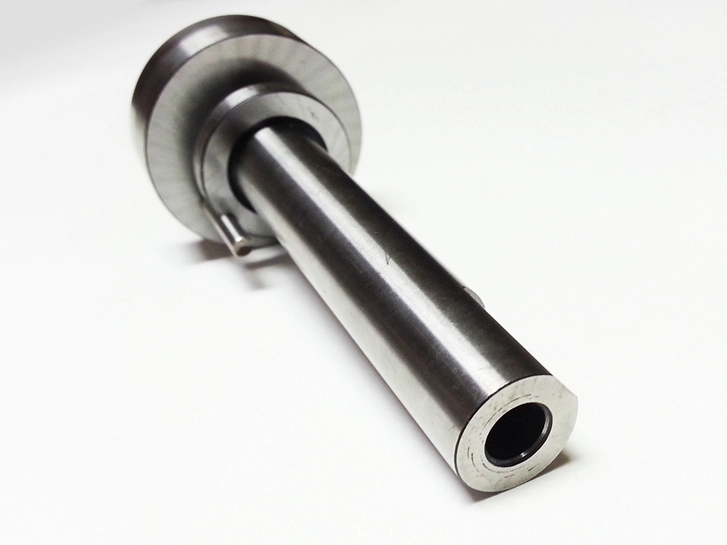

Guide bushes, rest bushes, brass bushes, etc.
