What is a material handling holder?
Introducing the features of material handling holders
Holder for material handling (grabbing and carrying) inside the machining center
Just attach to the machining center
Custom made design for any shape
Material handling holder applications
Workpiece transport, changeover of parts
Posture inversion Assembly of changeover parts
No major investment required for gantry loaders, robots, etc.
Good!

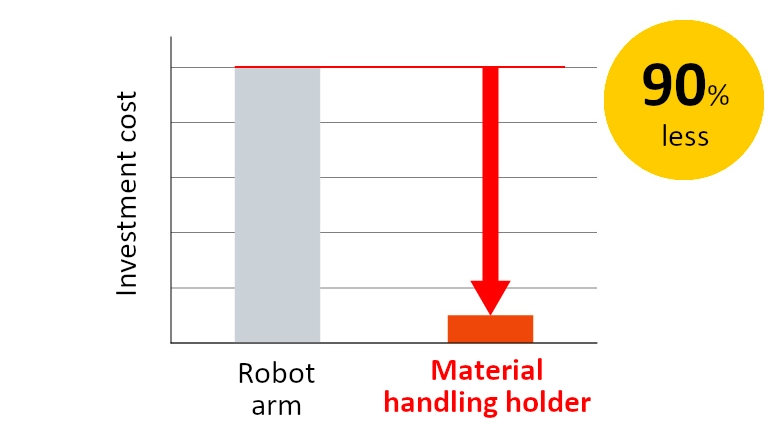

- Reduced equipment installation costs
No robot teaching required
(control by NC program)
Good!
- Reduced setup time
This is the point!
No special power required (3 drive sources to choose from)
Excellent!

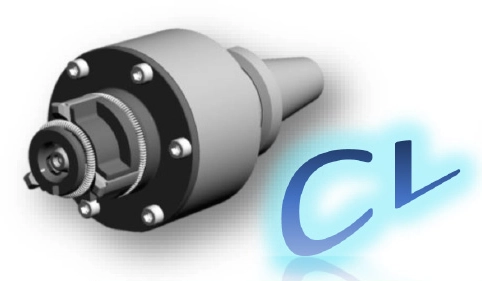

Type CL
Claw opens and closes with coolant pressure

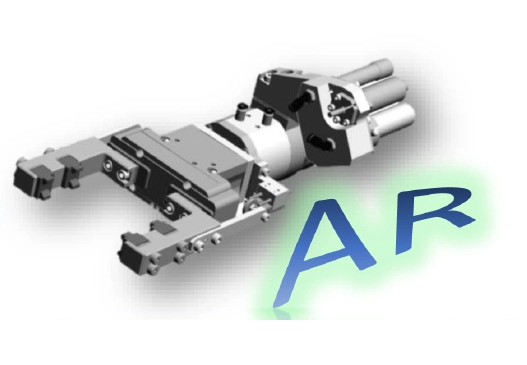

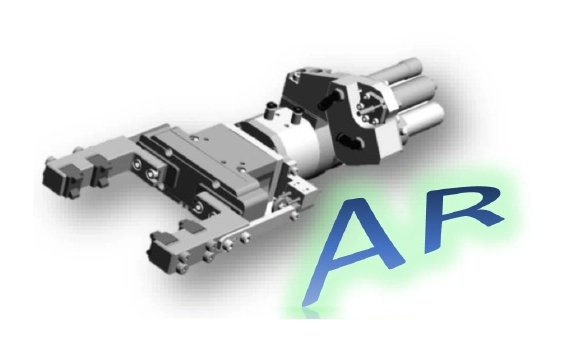

Type AR

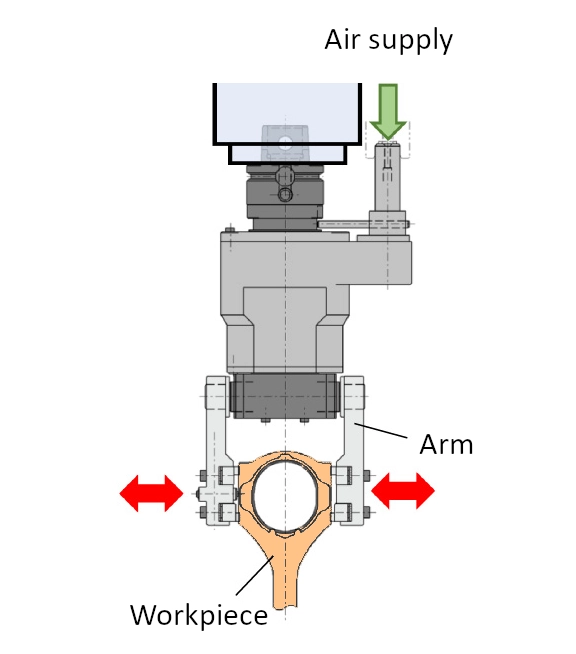

Arm opens and closes with air pressure

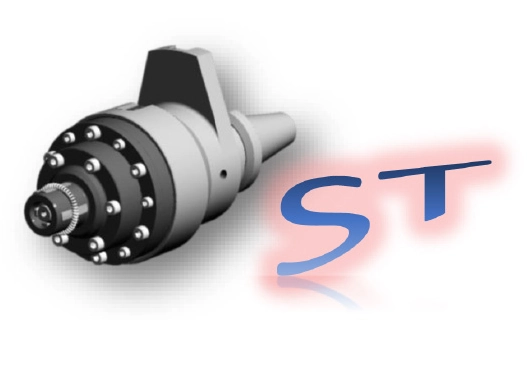

Type ST
Claw opens and closes by rotating the main axis 90°
Recommended for
- Workpiece changeover is done manually
- Equipment operation stops every time a jig is changed
- Robot arm installation is being considered, but there are concerns about the cost
- Already has robot, but teaching takes time
- Need higher positioning accuracy than with a robot
- Aiming for unmanned automatic tool changeover
Product specification
- Material handling holder specifications
Type
CL
AR
ST
Operation
Claw opens and closes with coolant pressure
Arm opens and closes with air pressure
Claw opens and closes by rotating the main axis 90°
Drive source
Coolant (1 ~ 2 MPa)
Air (0.3 ~ 0.6MPa)
Spindle rotation
Grip posture
Workpiece outer/inner shape
Workpiece outer shape
Workpiece inner shape
Gripping force
8 ~ 60 kgf
1 ~ 14 kgf
12 kgf
Work weight
~ 5 kg
~ 3 kg
~ 0.2 kg
Spindle interface
HS63, HSK-A63, BT30, BT40
HS63, D30-D40
BT30
Machine tool
Machining center, Lathe
Machining center, Lathe
Machining center
HSK / HS / BT (other general machining center interfaces on request)
