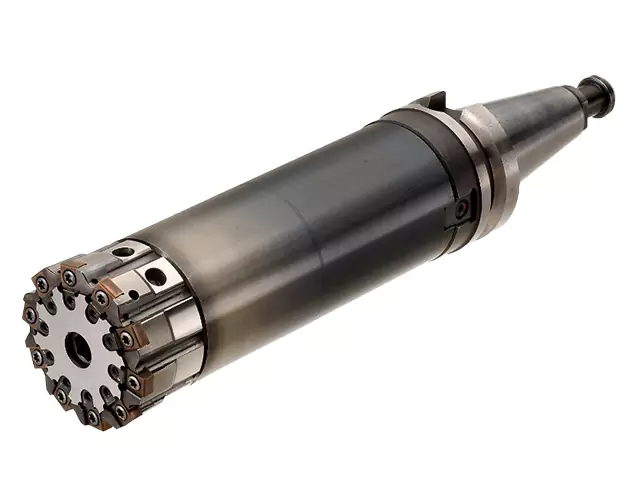

D-cut narzędzie
Cut any hole with helical machining!
Special cutting edge design enables helical machining
Special tools suitable for high-mix production
Various hole diameters handled by helical machining
20% less power consumption due to lower cutting resistance
Reduced spindle power achieves downsizing
Amazing facts!
── Introducing ideas and technologies ──
D-cut tool supports various hole diameters with a single tool by helical machining.
High-speed machining is realized with the most suitable cutting edge material. Low-resistance machining is achieved with multi-edge specifications and a unique edge runout adjustment mechanism.
Reduced spindle load enables spindle downsizing (in case of a conventional rough boring machine max diameter #50 to #40!).
This is the point!

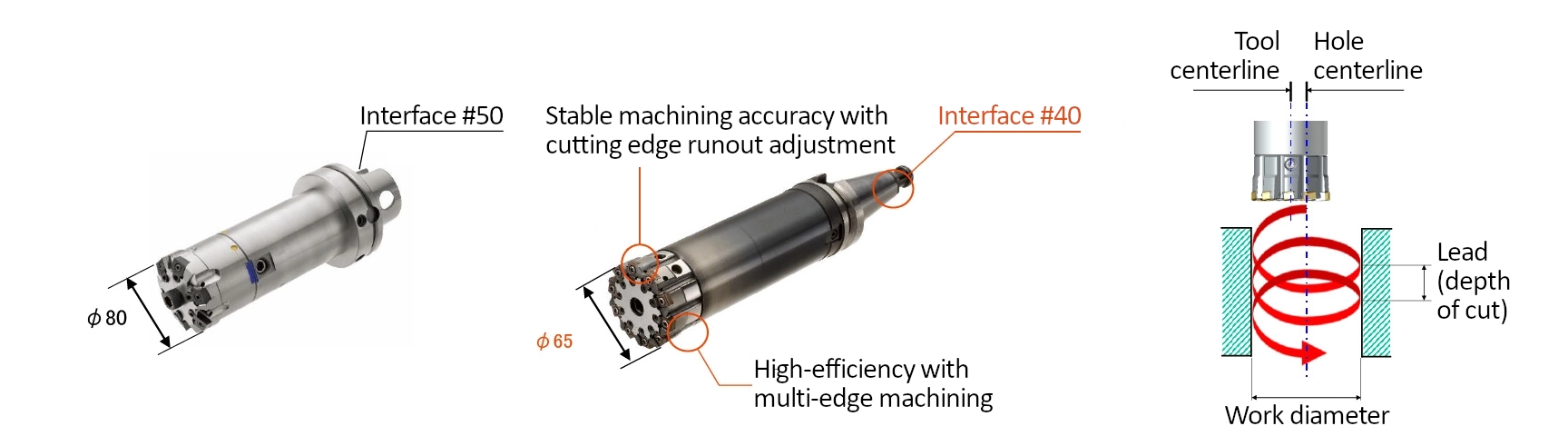

Single tooling with helical machining
Excellent!
Conventional machining
(boring process, tool ø80mm, interface #50)
D-Cut tool
(Helical machining, tool ø65mm, interface #40)

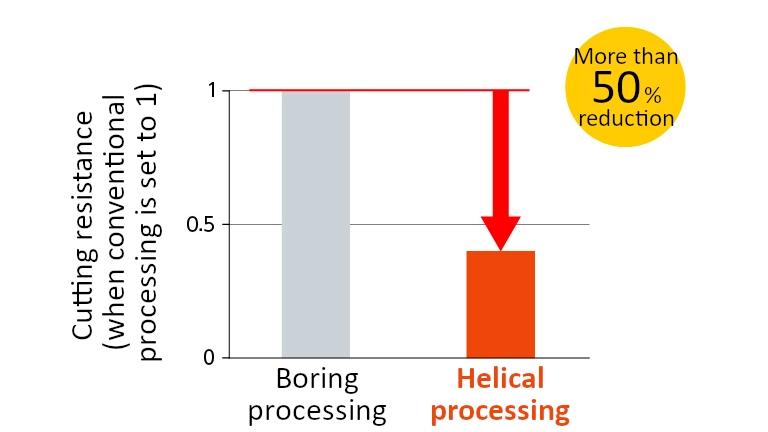

Reduced cutting resistance (torque)
Good!
More than 50% cutting resistance reduction

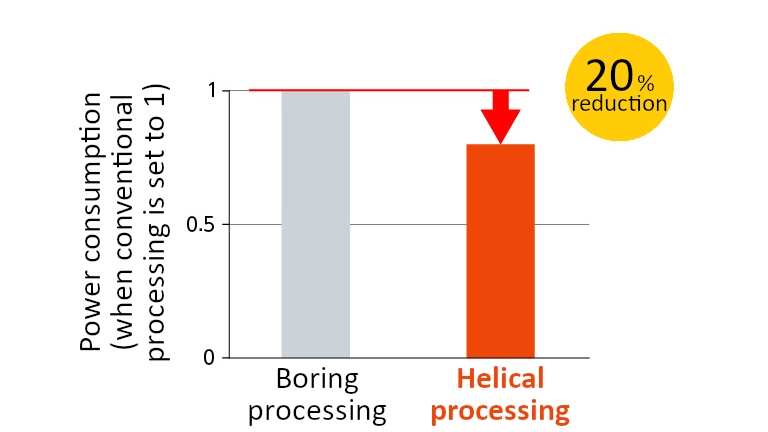

Reduced power consumption
Good!
20% power consumption reduction
Development / product concept
“Current status and challenges”
- There is a growing need for multiple-product production in the manufacturing field.
- However, in order to accommodate the different diameters of each workpiece, tools that match each hole diameter are required, which increases new investment in equipment and tools.
“Development points”
- The “D-CUT TOOL” uses helical machining, enabling it to handle a wide variety of workpieces and reducing the number of tools.
- Furthermore, the unique cutting edge and run-out adjustment mechanism enables low-resistance machining, resulting in “cost reduction” and “equipment downsizing.
Processing examples
Tool name
D-cut tool
Equipment used
Work material
Centrifugal cast iron
Tool diameter
ø65 mm
Target machining diameter
ø79.9±0.1 mm
Cutting length
135 mm
Allowance
ø3.2 mm
- Cutting conditions
Cutting time
23 seconds
Spindle speed
n = 3250 min-1
Feed
f = 1.6 mm/rev
Lead
3.5 mm
Contouring radius
7.45 mm
Coolant
Dry

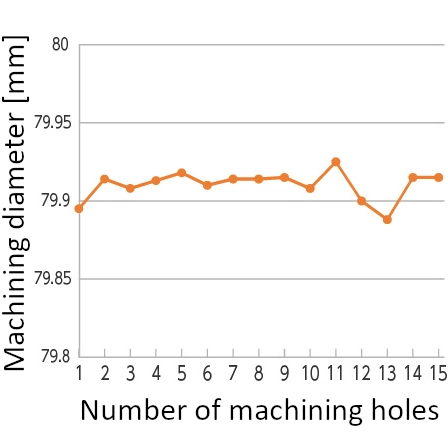

Machining diameter
Target machining diameter is easily maintained over the time

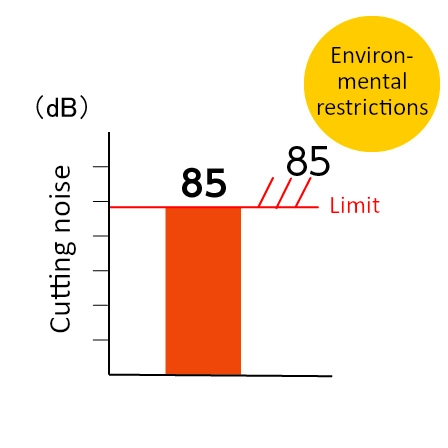

Cutting noise
Helps to comply with environmental restrictions such as cutting noise

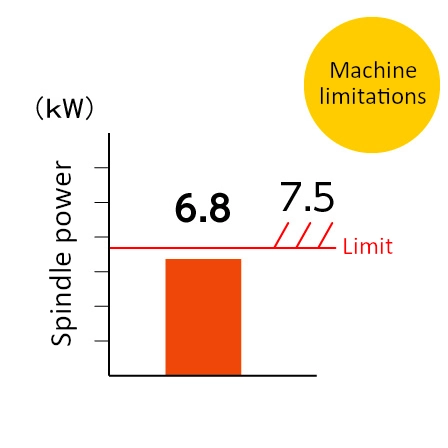

Spindle power
Helps to utilize machinery with lower spindle power and contributes to lower wear of the machinery.
Product specifications
- Tool specifications
Tool name
D-cut tool
Insert type
(Cast iron) Ceramics
(Aluminium) Carbide + DLC
Tool diameter x number of teeth
ø55 mm × 8 edges
ø65 mm × 10 edges
ø85 mm × 12 edges
Machining diameter
ø65 mm～
ø75 mm～
ø95 mm～
- Application example

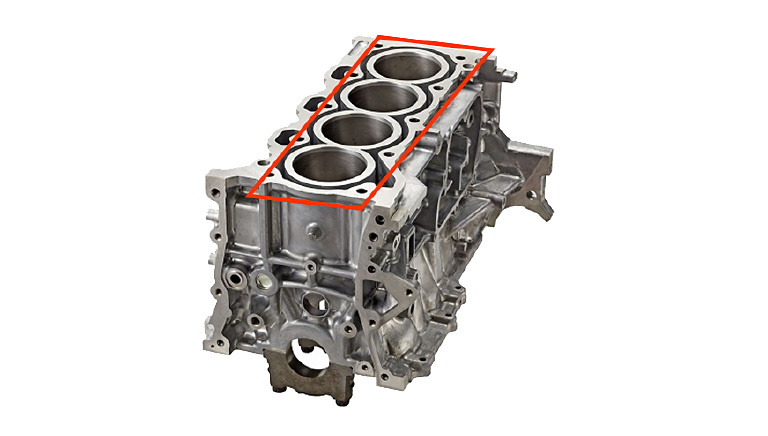

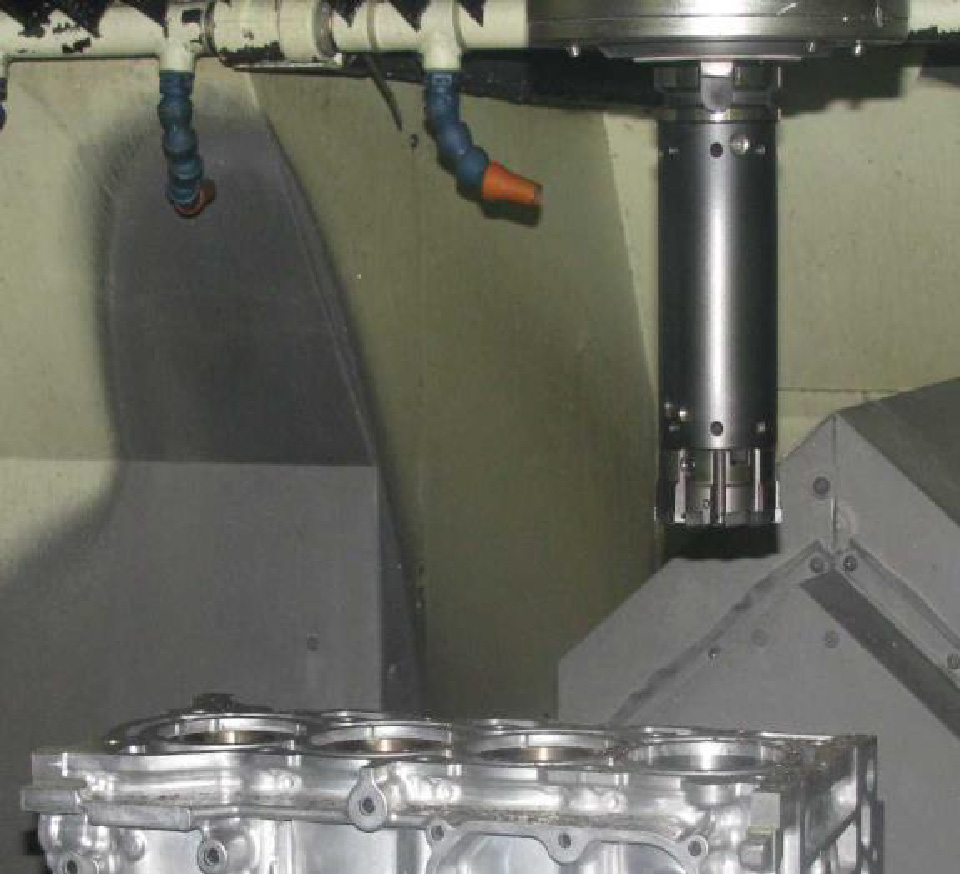

Cylinder block bore hole roughing
Transaxle case main bore roughing
