Overcome the weak points of a multi-edge boring cutter!
One-shot machining by special construction for the role of the cutting edge
Boring holder for high-precision and efficient machining

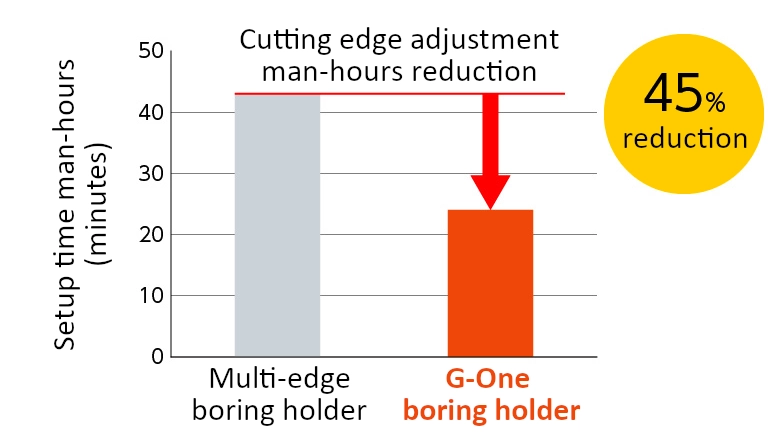

45% less setup time by not requiring any edge runout adjustment

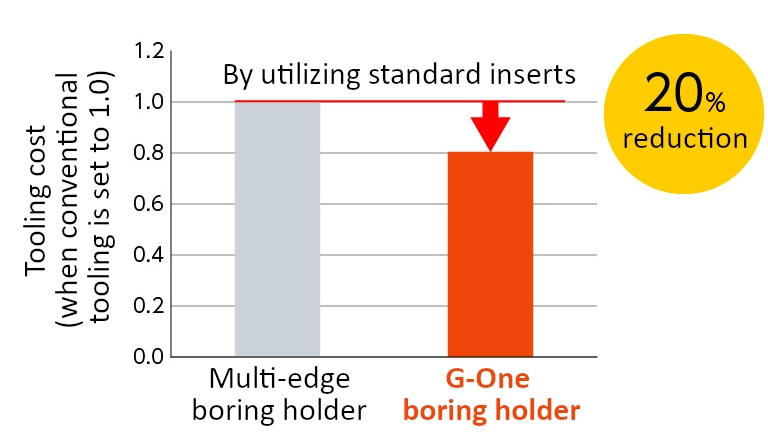

20% cost reduction by using standard inserts
Improved machining accuracy with a single edge
1-shot machining
Invest-ment cut
Japan's Tooling Assocation ECO AWARD
Amazing facts!
── Introducing ideas and technologies ──
The G-one holder consists of multiple roughing and finishing edges.
By dividing the role of each cutting edge function and using a single finishing edge with standard inserts, the G-one holder reduces setting time compared with conventional products and does not rely on the skill of the operator.
High productivity, high-precision machining and reduced costs are achieved.
Reduced setup time
Good!
Cost reduction
Good!
This is the point!

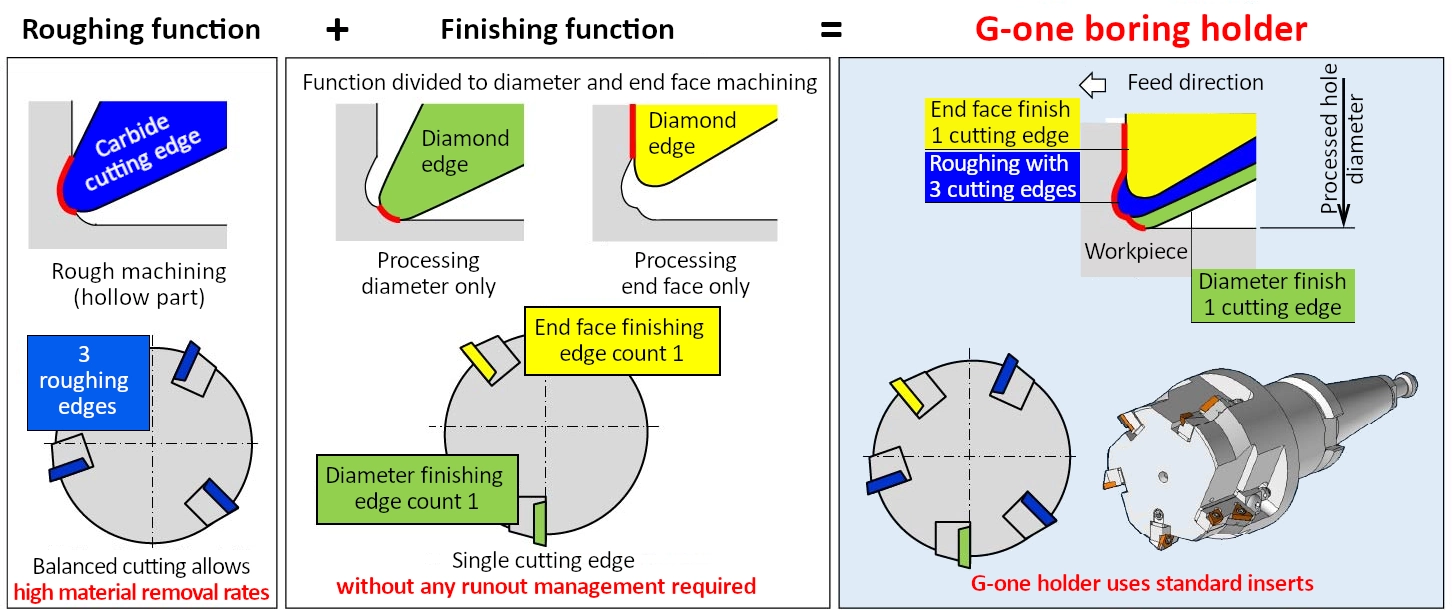

The role of the cutting edge is divided by function
Excellent!
Development / product concept
“Current status and challenges”
- In high-precision hole drilling of aluminium workpieces, ‘one-shot machining’ from the material hole by using multi-edge tools has been established with the aim of increasing cycle time through process reduction from conventional rough and finish machining.
- However, new issues have to be addressed at the production site, such as long cutting edge setup time due to multi-edge machining, unstable machining accuracy due to edge run-out, and high costs for special inserts.
“Development points”
- The “G-one holder” solves these problems by integrating multiple cutting edges with different roles and properties into a single holder, and also achieves high accuracy, high efficiency and low cost, comparable to conventional machining.
Processing example
Tool used

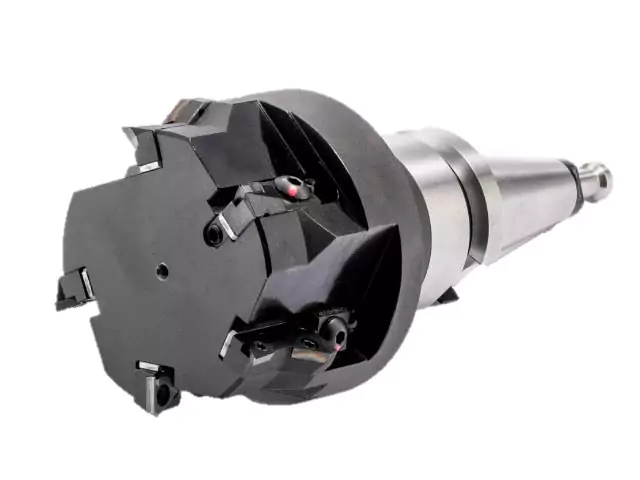

G-one holder
Machining work

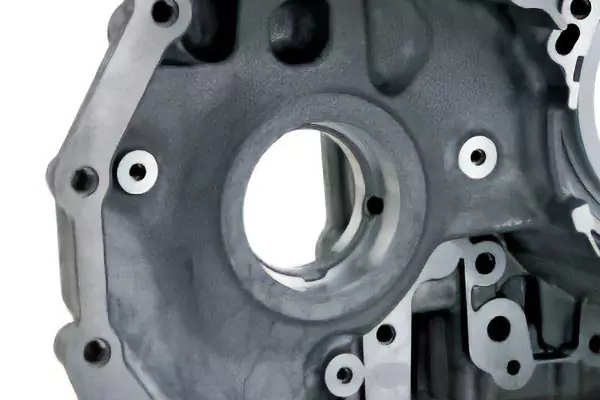

Transmission case / Bearing hole
Work material
JIS ADC12 / ENAC-AlS11Cu2(Fe)
Tool diameter
ø74 mm
Cutting conditions
Spindle speed: n = 10000 min-1
Cutting speed: Vc = 2325 m/min
Feed: f = 0.15 mm/rev
Cutting speed: Vc = 2325 m/min
Feed: f = 0.15 mm/rev

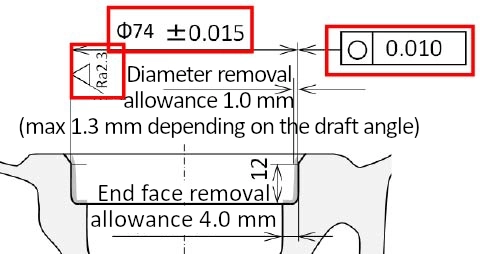

Required
accuracy

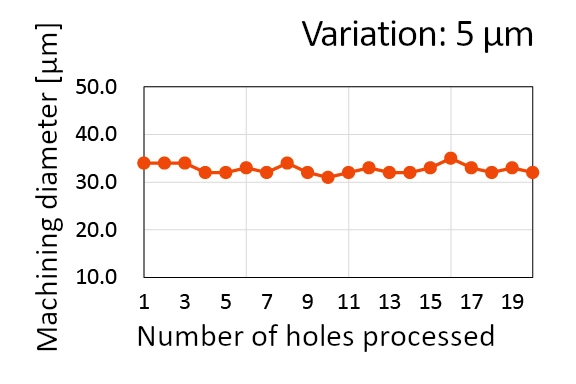

Hole diameter variation
Variation: 5 μm

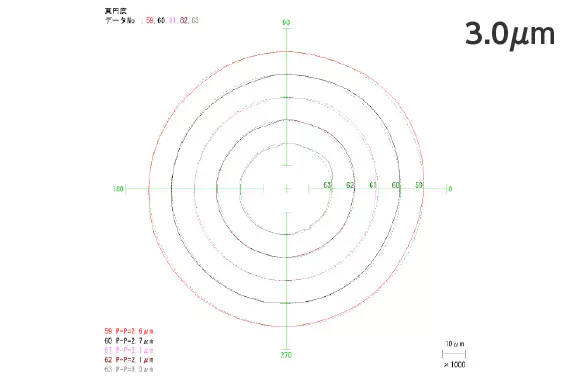

Roundness
Roundness 3.0 μm

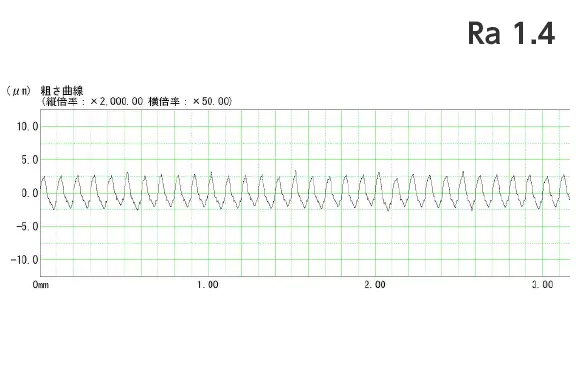

Surface roughness
Surface roughness Ra 1.4 μm
Product specification
- Tool specification
Tool name
G-one holder
Target process
Aluminium high-precision boring process (one-shot material processing)
Setting diameter
ø55 mm ~
Standard conditions
Spindle speed: n = 10 000 min -1
Feed: f = 0.1~0.15 mm/rev
Feed: f = 0.1~0.15 mm/rev
Machining accuracy
Hole diameter: IT7 grade
Roundness: 5 μm
- Example of applicable work

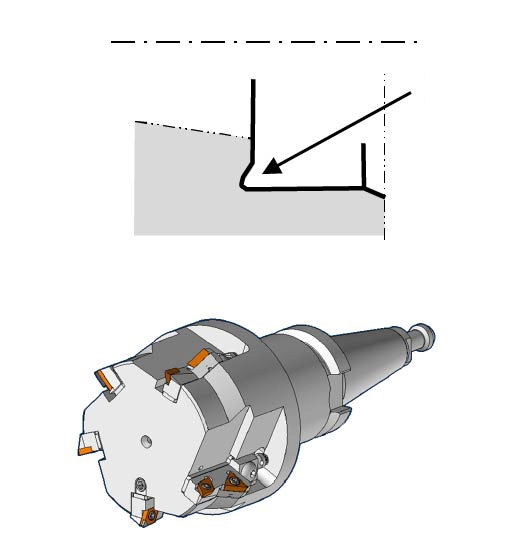

Corner relief

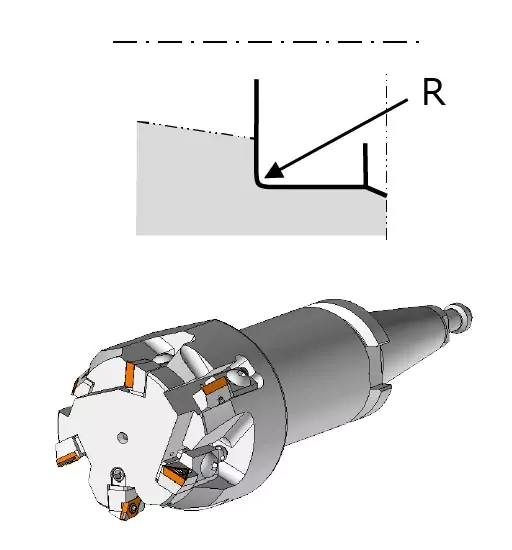

Corner radius

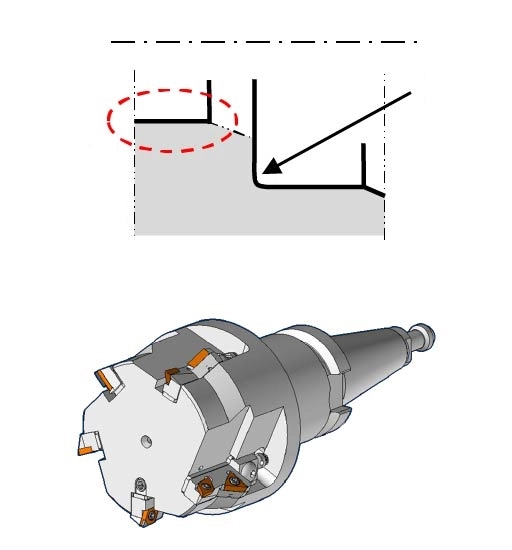

Corner relief or corner radius in through hole
